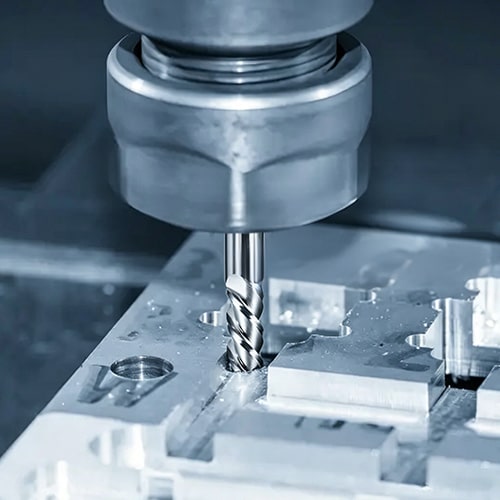

Description
Processing Characteristics

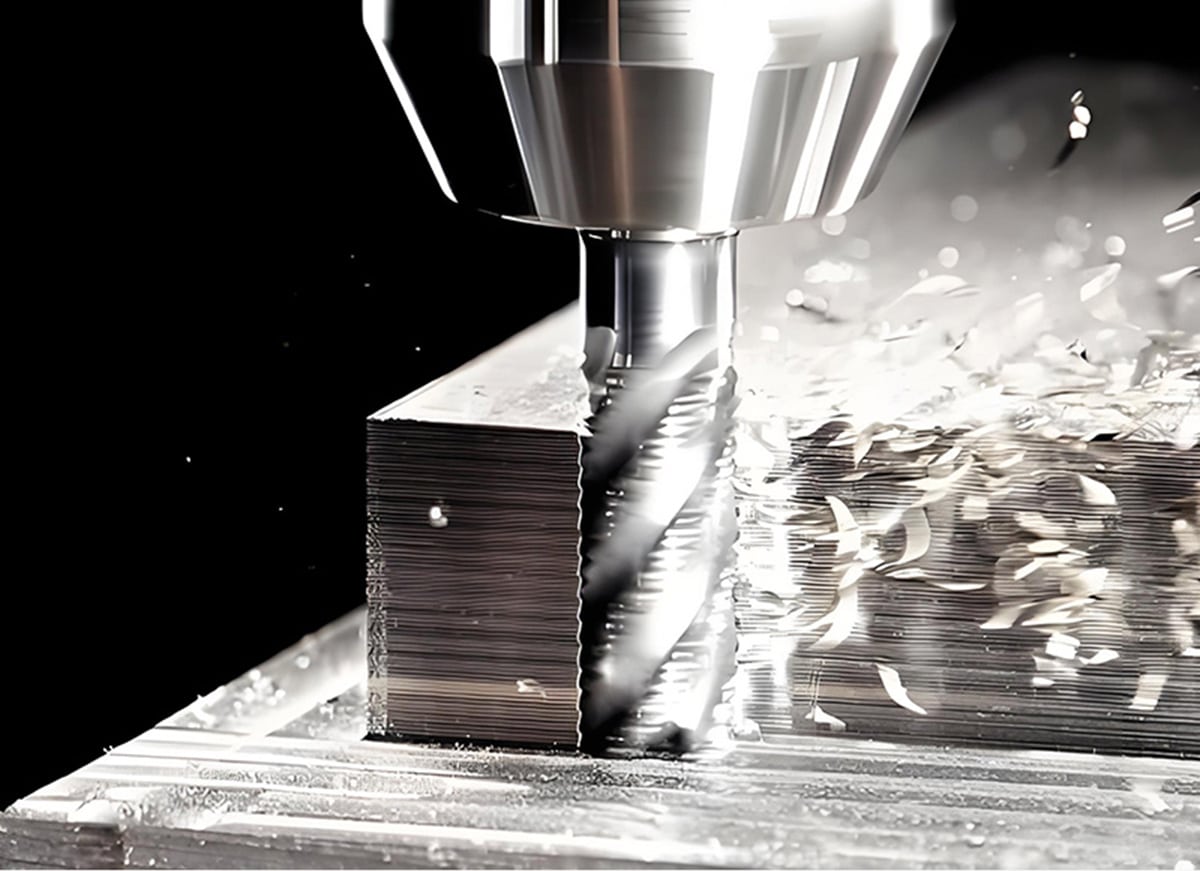

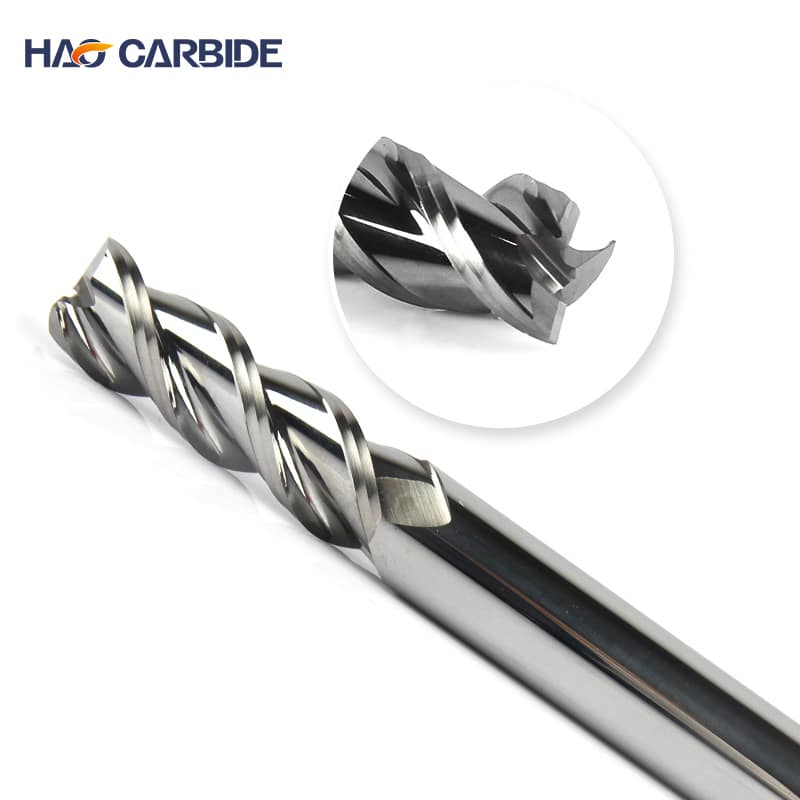

The standard 3F configuration strikes an optimal balance between chip capacity, cutting efficiency, and surface finish quality; constructed from carbide with an ultra-fine grain substrate, offering exceptional hardness, wear resistance, and toughness; features a large helix angle of 35°–45°, combined with a large rake angle of 15°–25° and a clearance angle of 10°–15° to minimize cutting resistance and friction; cutting edges are either mirror-polished or treated with a DLC coating to prevent material adhesion, while large U-shaped chip flutes facilitate highly efficient chip evacuation.

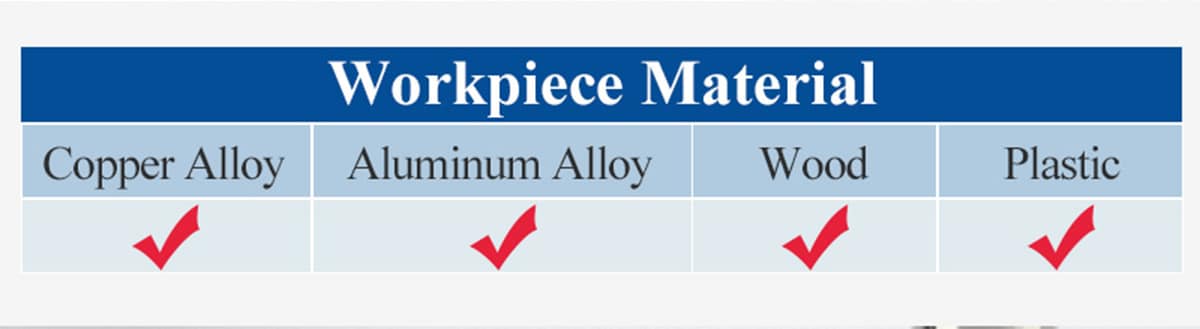

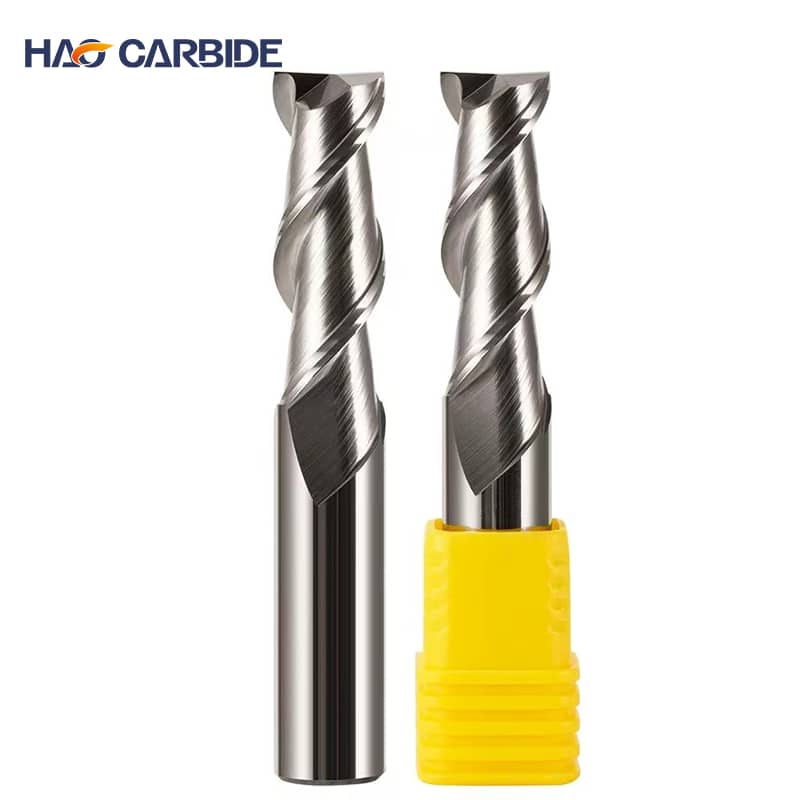

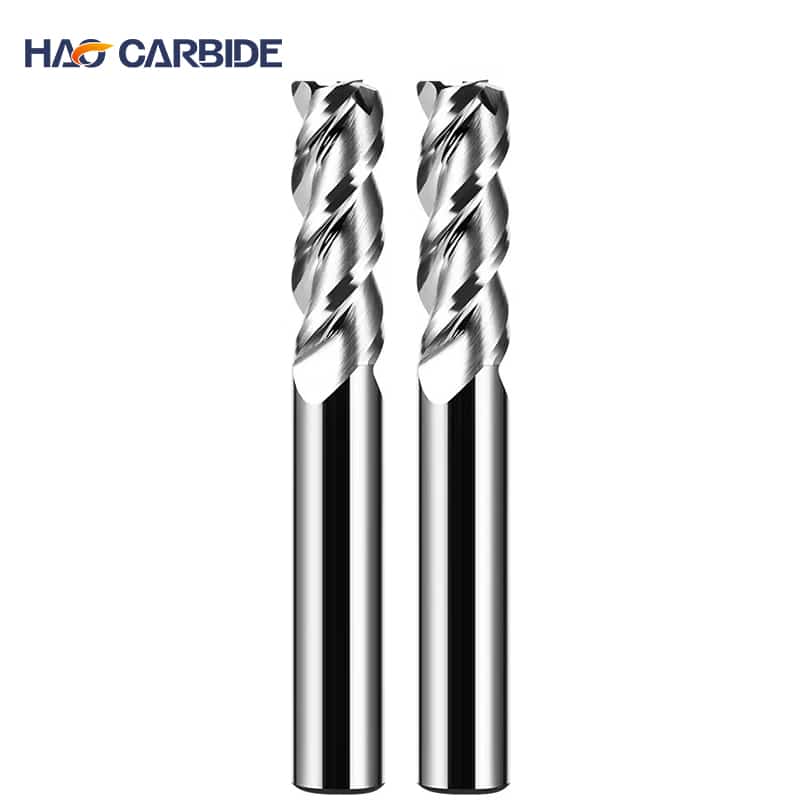

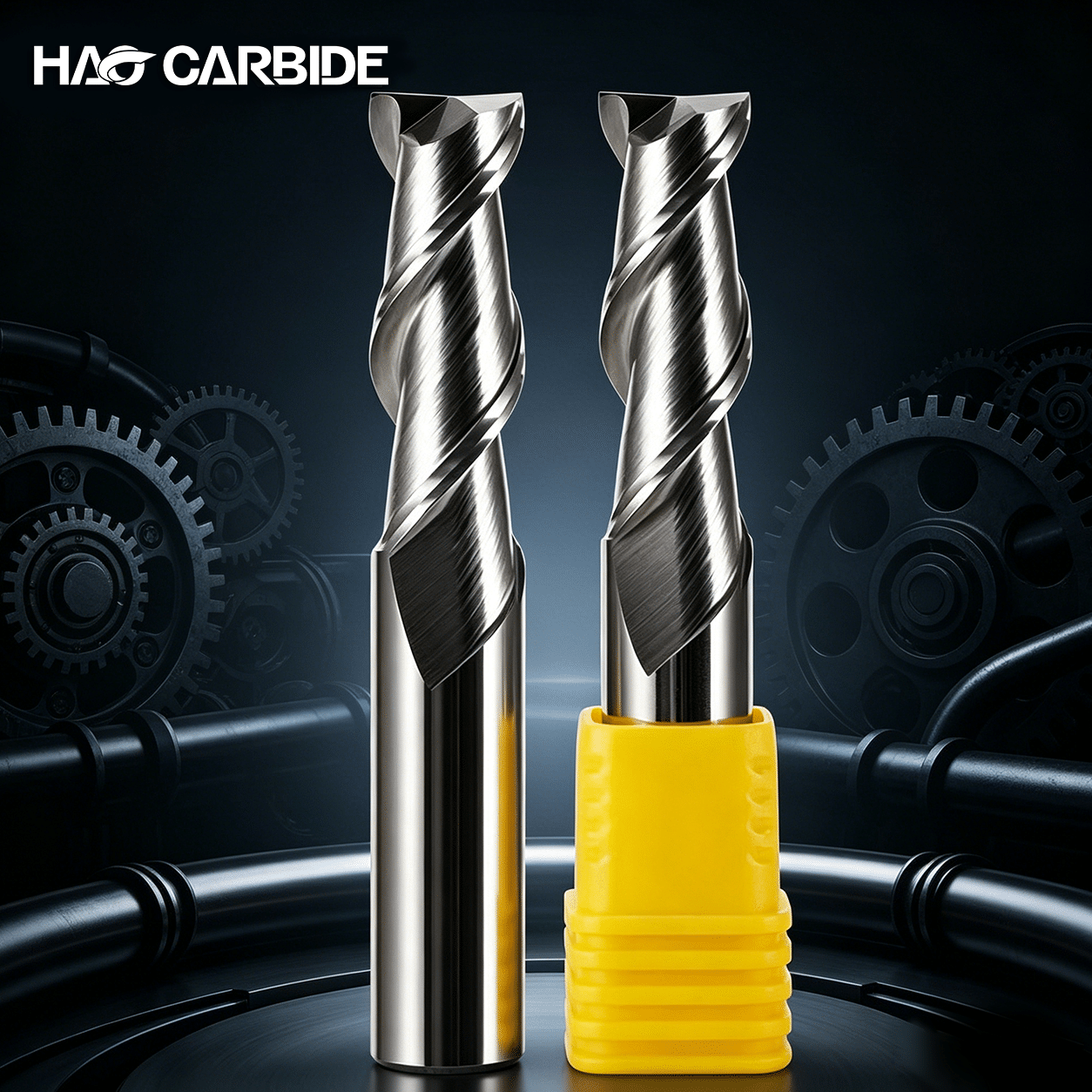

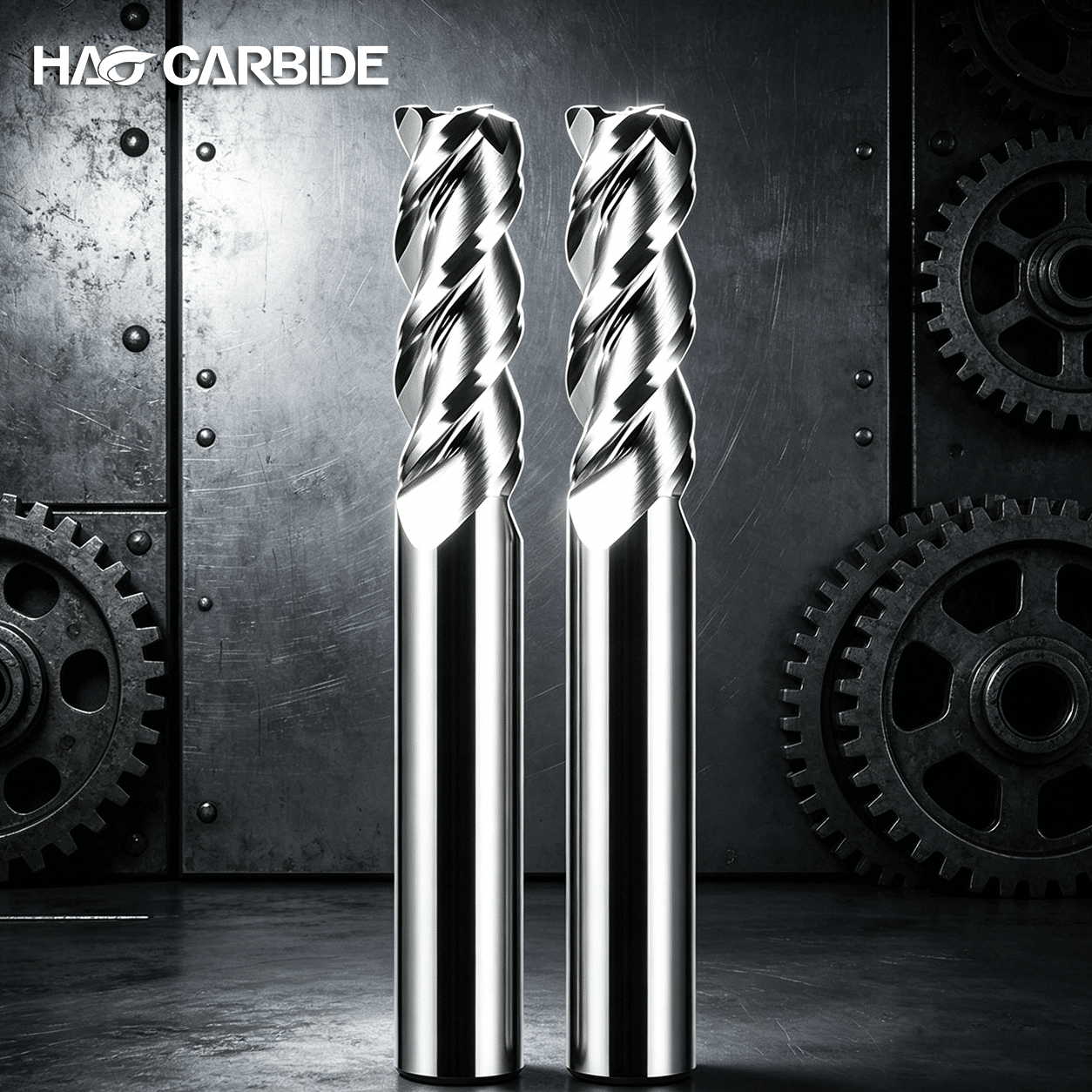

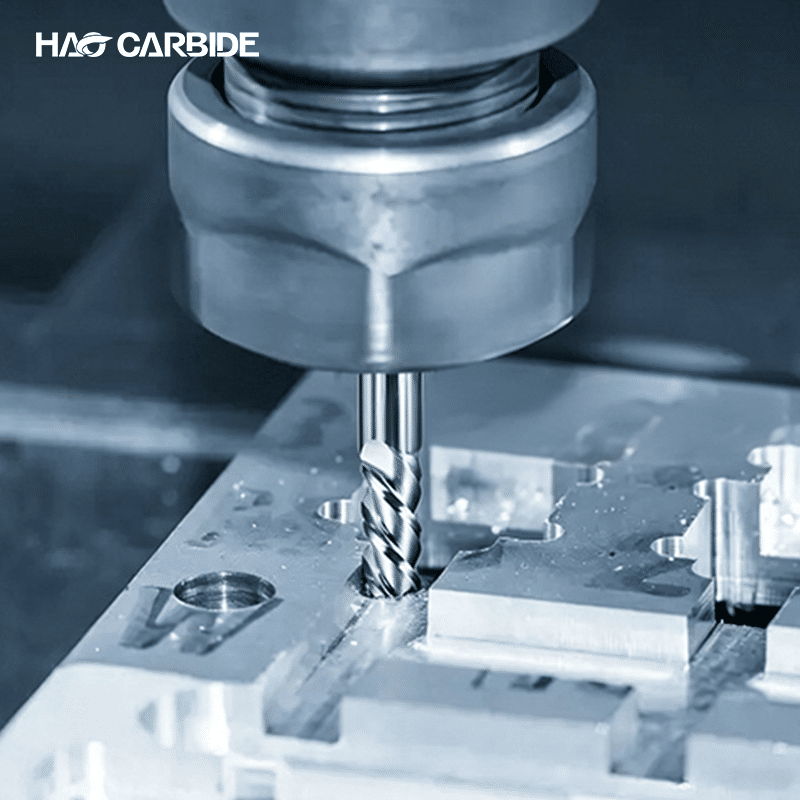

Solid Carbide Square End Mills for Aluminum & Copper Alloy
<Product Details>

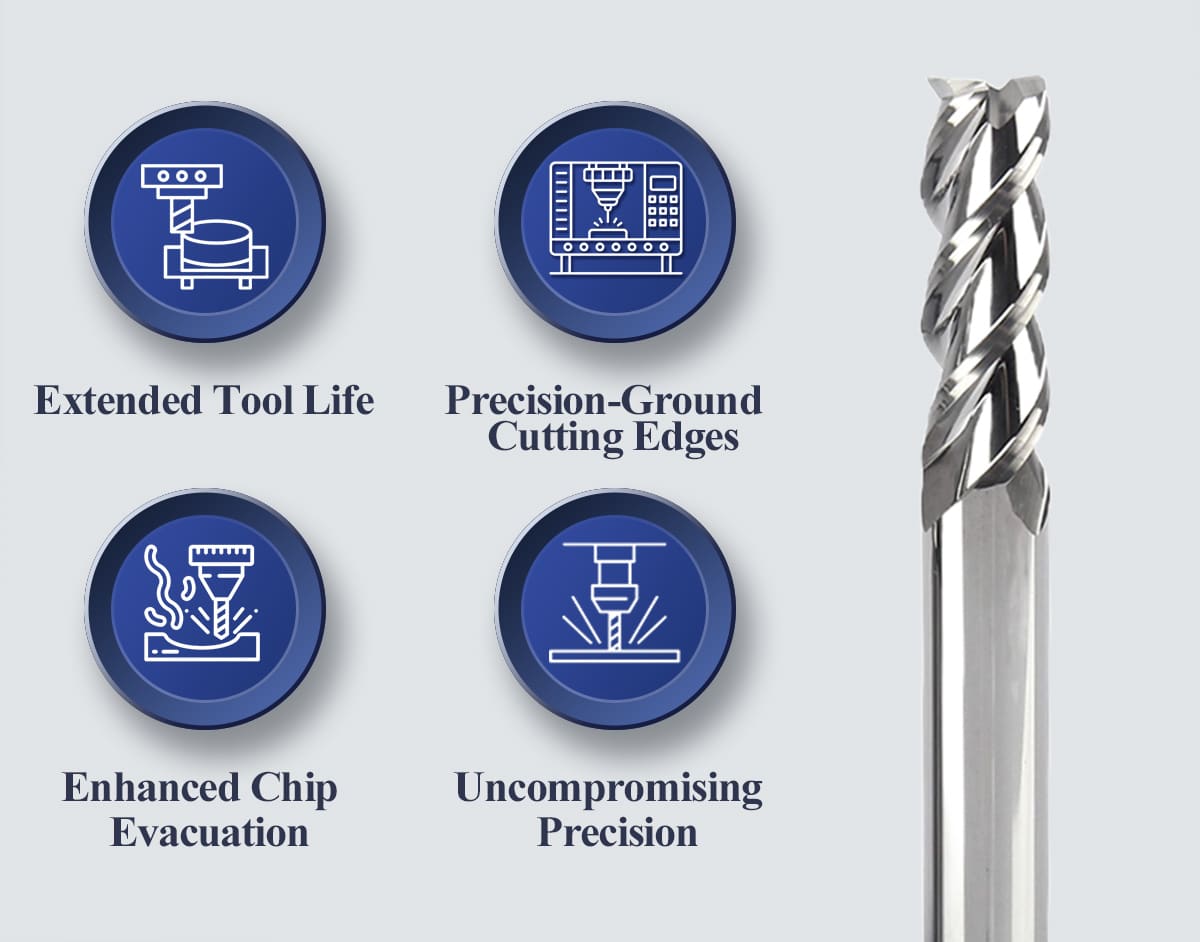

Extended Tool Life
Crafted from ultra-fine grain tungsten carbide, these end mills offer superior wear resistance and an extended lifespan, reducing tooling costs and downtime.

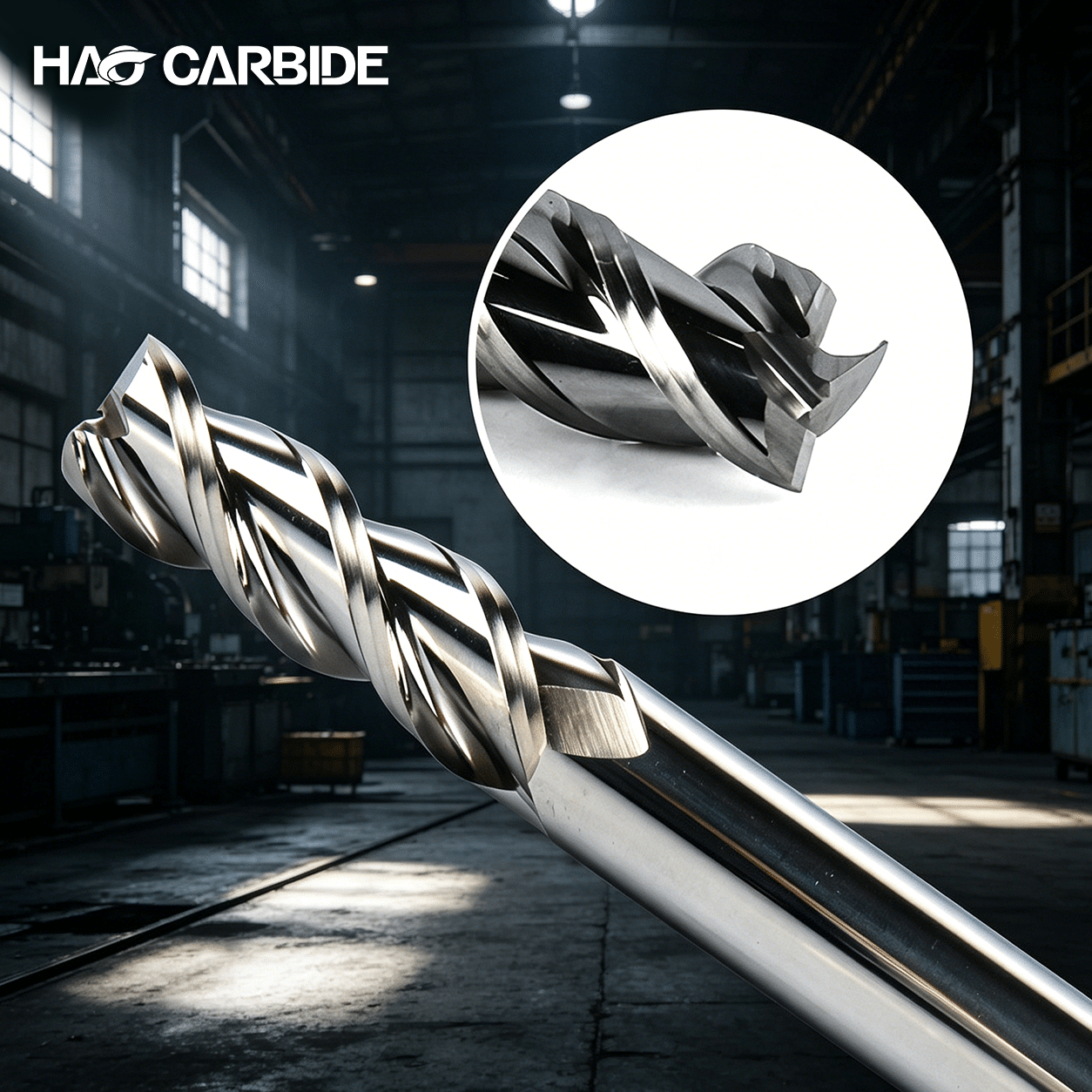

Precision-Ground Cutting Edges
The cutting edge features an internal arc design that minimizes chipping and breakage during machining, resulting in a sharper, more durable cutting tool.

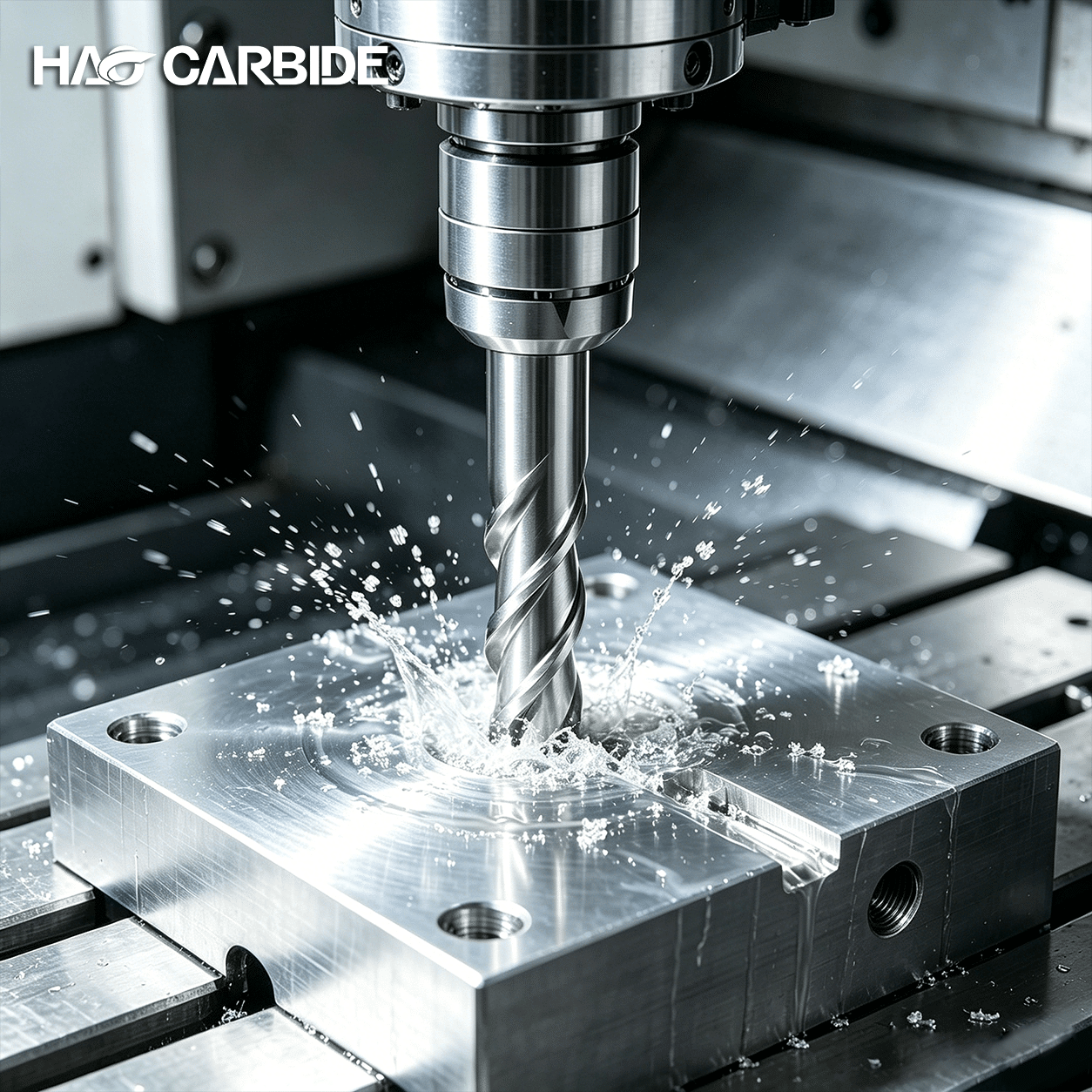

Enhanced Chip Evacuation
A 45° helix angle and large-capacity flutes promote efficient chip removal, minimizing heat buildup and maximizing productivity, resulting in higher precision and a smoother surface finish.
Uncompromising Precision
The polished shank with a precise chamfer allows for easy tool changes and secure clamping in the collet.

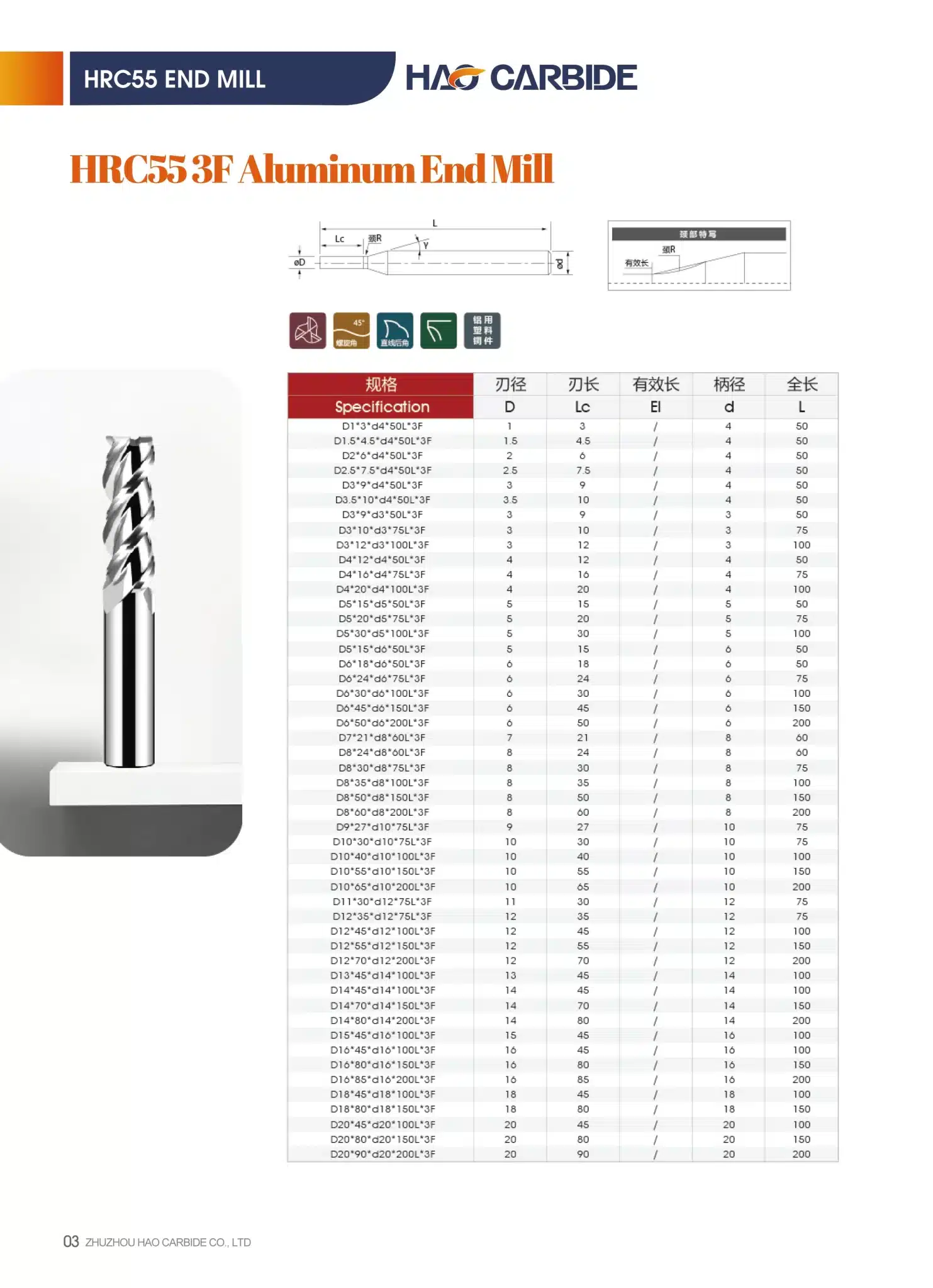

<Product Paramenters>

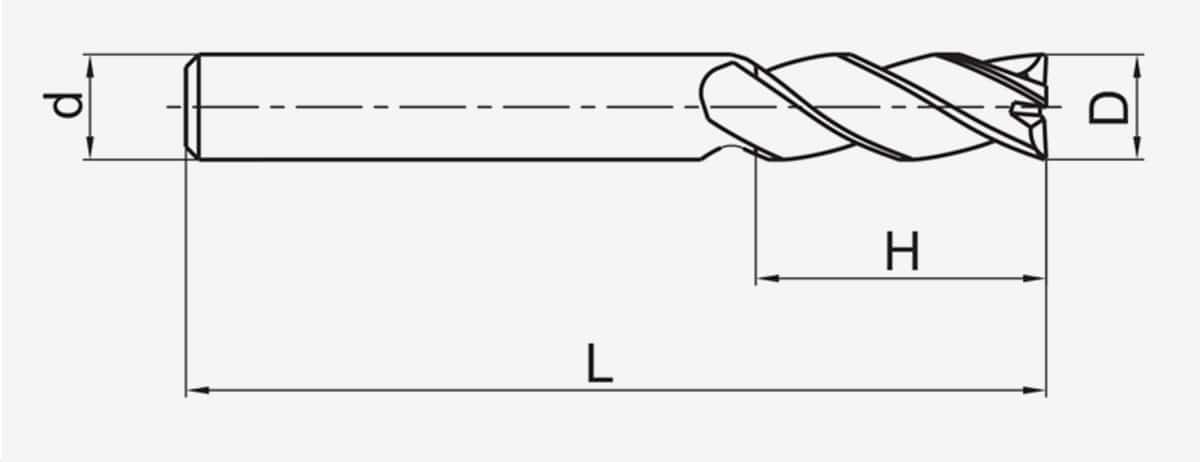

| Specification | D | H | d | L |
|---|---|---|---|---|
| D1*3*d4*50L*3F | 1 | 3 | 4 | 50 |
| D1.5*4.5*d4*50L*3F | 1.5 | 4.5 | 4 | 50 |
| D2*6*d4*50L*3F | 2 | 6 | 4 | 50 |
| D2.5*7.5*d4*50L*3F | 2.5 | 7.5 | 4 | 50 |
| D3*9*d4*50L*3F | 3 | 9 | 4 | 50 |
| D3.5*10*d4*50L*3F | 3.5 | 10 | 4 | 50 |
| D3*9*d3*50L*3F | 3 | 9 | 3 | 50 |
| D3*10*d3*75L*3F | 3 | 10 | 3 | 75 |
| D3*12*d3*100L*3F | 3 | 12 | 3 | 100 |
| D4*12*d4*50L*3F | 4 | 12 | 4 | 50 |
| D4*16*d4*75L*3F | 4 | 16 | 4 | 75 |
| D4*20*d4*100L*3F | 4 | 20 | 4 | 100 |
| D5*15*d5*50L*3F | 5 | 15 | 5 | 50 |
| D5*20*d5*75L*3F | 5 | 20 | 5 | 75 |
| D5*30*d5*100L*3F | 5 | 30 | 5 | 100 |
| D5*15*d6*50L*3F | 5 | 15 | 6 | 50 |
| D6*18*d6*50L*3F | 6 | 18 | 6 | 50 |
| D6*24*dó*75L*3F | 6 | 24 | 6 | 75 |
| D6*30*d6*100L*3F | 6 | 30 | 6 | 100 |
| D6*45*d6*150L*3F | 6 | 45 | 6 | 150 |
| D6*50*d6*200L*3F | 6 | 50 | 6 | 200 |
| D7*21*d8*60L*3F | 7 | 21 | 8 | 60 |
| D8*24*d8*60L*3F | 8 | 24 | 8 | 60 |
| D8*30*d8*75L*3F | 8 | 30 | 8 | 75 |
| D8*35*d8*100L*3F | 8 | 35 | 8 | 100 |
| D8*50*d8*150L*3F | 8 | 50 | 8 | 150 |
| D8*60*d8*200L*3F | 8 | 60 | 8 | 200 |
| D9*27*d10*75L*3F | 9 | 27 | 10 | 75 |
| D10*30*d10*75L*3F | 10 | 30 | 10 | 75 |
| D10*40*d10*100L*3F | 10 | 40 | 10 | 100 |
| D10*55*d10*150L*3F | 10 | 55 | 10 | 150 |
| D10*65*d10*200L*3F | 10 | 65 | 10 | 200 |
| D11*30*d¹2*75L*3F | 11 | 30 | 12 | 75 |
| D12*35*d12*75L*3F | 12 | 35 | 12 | 75 |
| D12*45*d12*100L*3F | 12 | 45 | 12 | 100 |
| D12*55*d12*150L*3F | 12 | 55 | 12 | 150 |
| D12*70*d12*200L*3F | 12 | 70 | 12 | 200 |
| D13*45*d14*100L*3F | 13 | 45 | 14 | 100 |
| D14*45*d14*100L*3F | 14 | 45 | 14 | 100 |
| D14*70*d14*150L*3F | 14 | 70 | 14 | 150 |
| D14*80*d14*200L*3F | 14 | 80 | 14 | 200 |
| D15*45*d16*100L*3F | 15 | 45 | 16 | 100 |
| D16*45*d16*100L*3F | 16 | 45 | 16 | 100 |
| D16*80*d16*150L*3F | 16 | 80 | 16 | 150 |
| D16*85*dl6*200L*3F | 16 | 85 | 16 | 200 |
| D18*45*d18*100L*3F | 18 | 45 | 18 | 100 |
| D18*80*d18*150L*3F | 18 | 80 | 18 | 150 |
| D20*45*d20*100L*3F | 20 | 45 | 20 | 100 |
| D20*80*d20*150L*3F | 20 | 80 | 20 | 150 |
| D20*90*d20*200L*3F | 20 | 90 | 20 | 200 |
| Specification | D | H | d | L |
|---|---|---|---|---|
| D1.5*4.5*d4*50L*2F | 1.5 | 4.5 | 4 | 50 |
| D2*6*d4*50L*2F | 2 | 6 | 4 | 50 |
| D2.5*7.5*d4*50L*2F | 2.5 | 7.5 | 4 | 50 |
| D3*9*d4*50L*2F | 3 | 9 | 4 | 50 |
| D4*12*d4*50L*2F | 4 | 12 | 4 | 50 |
| D4*16*d4*75L*2F | 4 | 16 | 4 | 75 |
| D4*20*d4*100L*2F | 4 | 20 | 4 | 100 |
| D5*15*d6*50L*2F | 5 | 15 | 6 | 50 |
| D6*18*d6*50L*2F | 6 | 18 | 6 | 50 |
| D6*20*d6*75L*2F | 6 | 24 | 6 | 75 |
| D6*30*d6*100L*2F | 6 | 30 | 6 | 100 |
| D8*24*d8*60L*2F | 8 | 24 | 8 | 60 |
| D8*25*d8*75L*2F | 8 | 30 | 8 | 75 |
| D8*30*d8*100L*2F | 8 | 35 | 8 | 100 |
| D10*30*d10*75L*2F | 10 | 30 | 10 | 75 |
| D10*40*d10*100L*2F | 10 | 40 | 10 | 100 |
| D12*35*d12*75L*2F | 12 | 35 | 12 | 75 |
| D12*45*d12*100L*2F | 12 | 45 | 12 | 100 |
| D14*40*d14*100L*2F | 14 | 45 | 14 | 100 |
| D16*45*d16*100L*2F | 16 | 45 | 16 | 100 |
| D20*45*d20*100L*2F | 20 | 45 | 20 | 100 |
