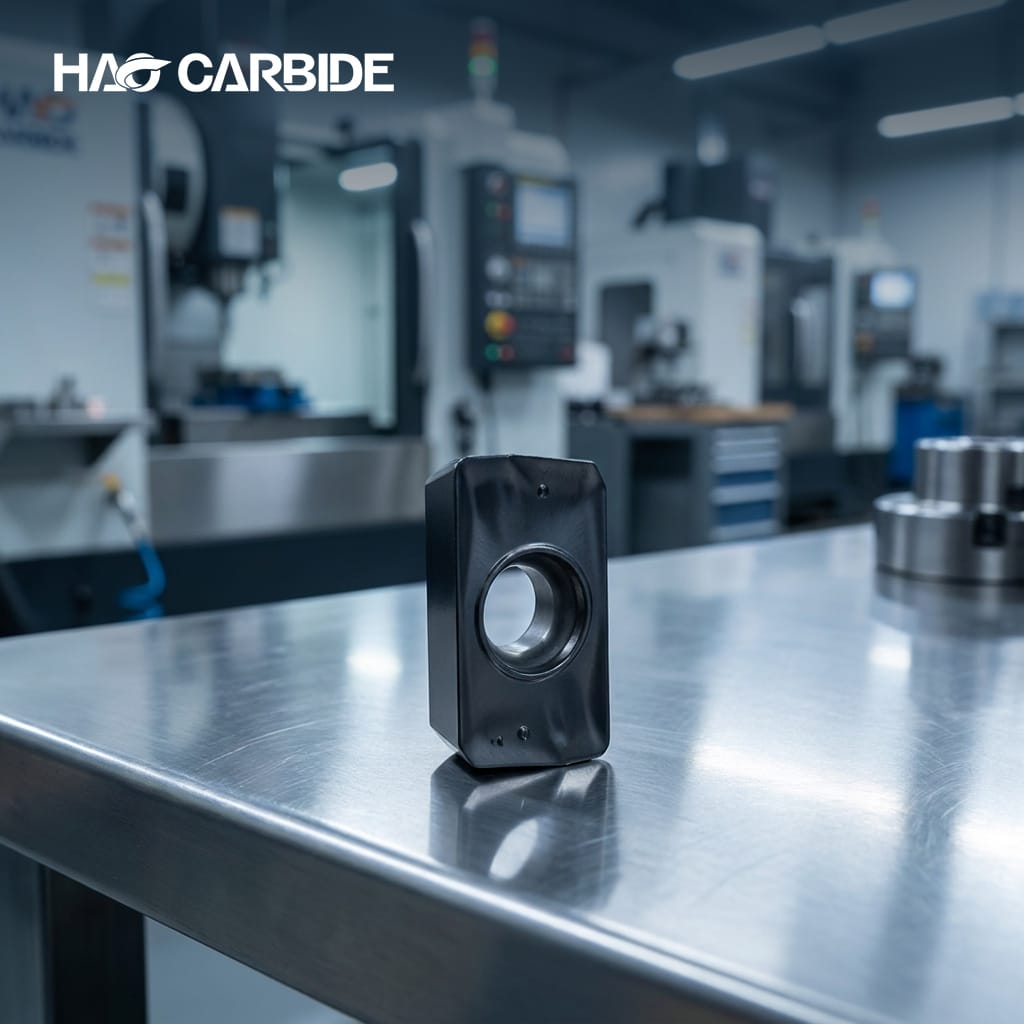

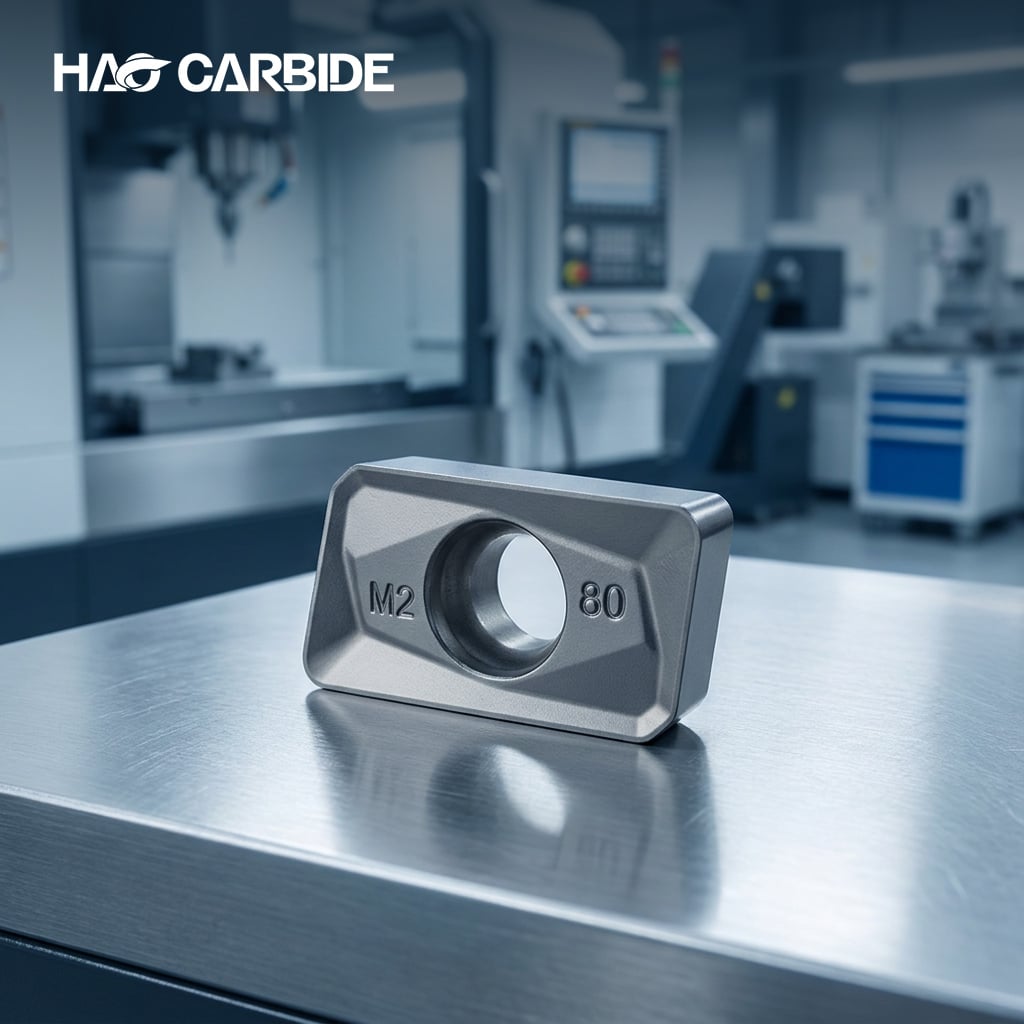

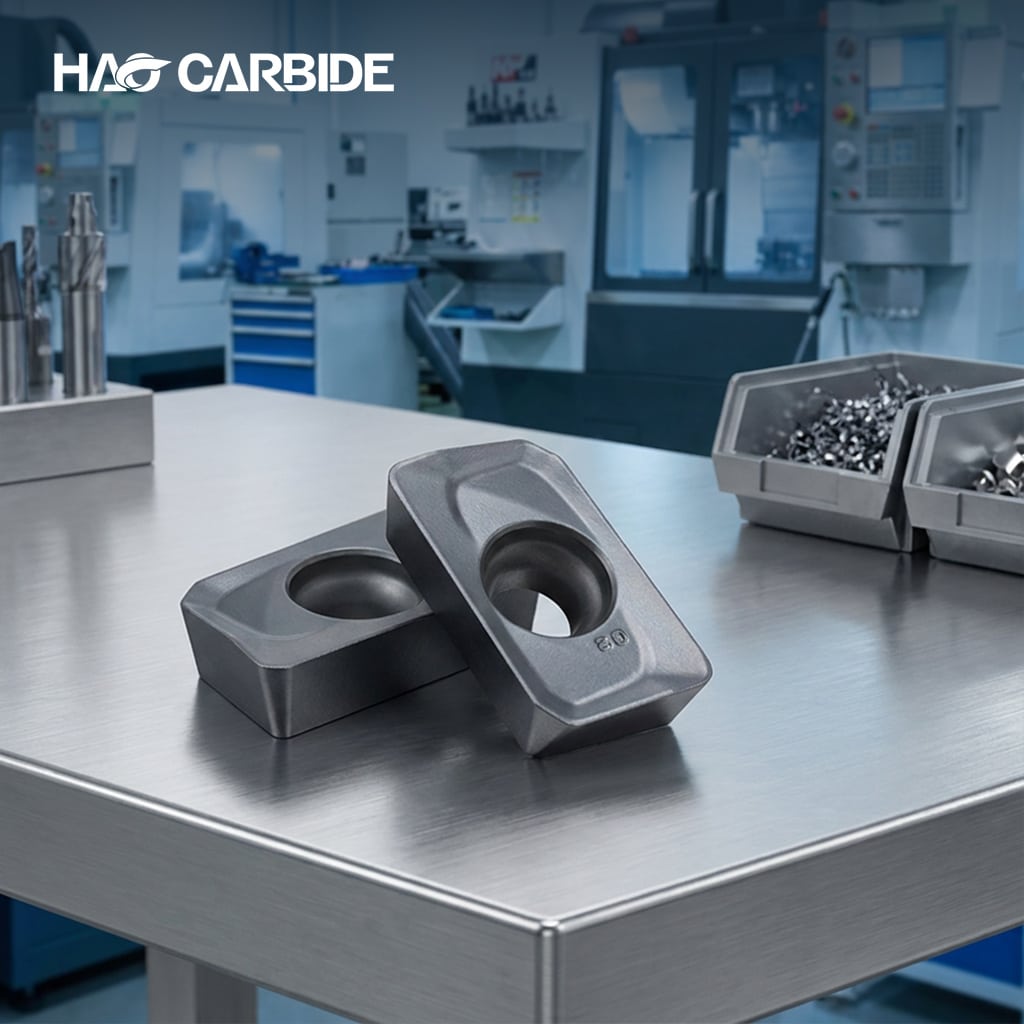

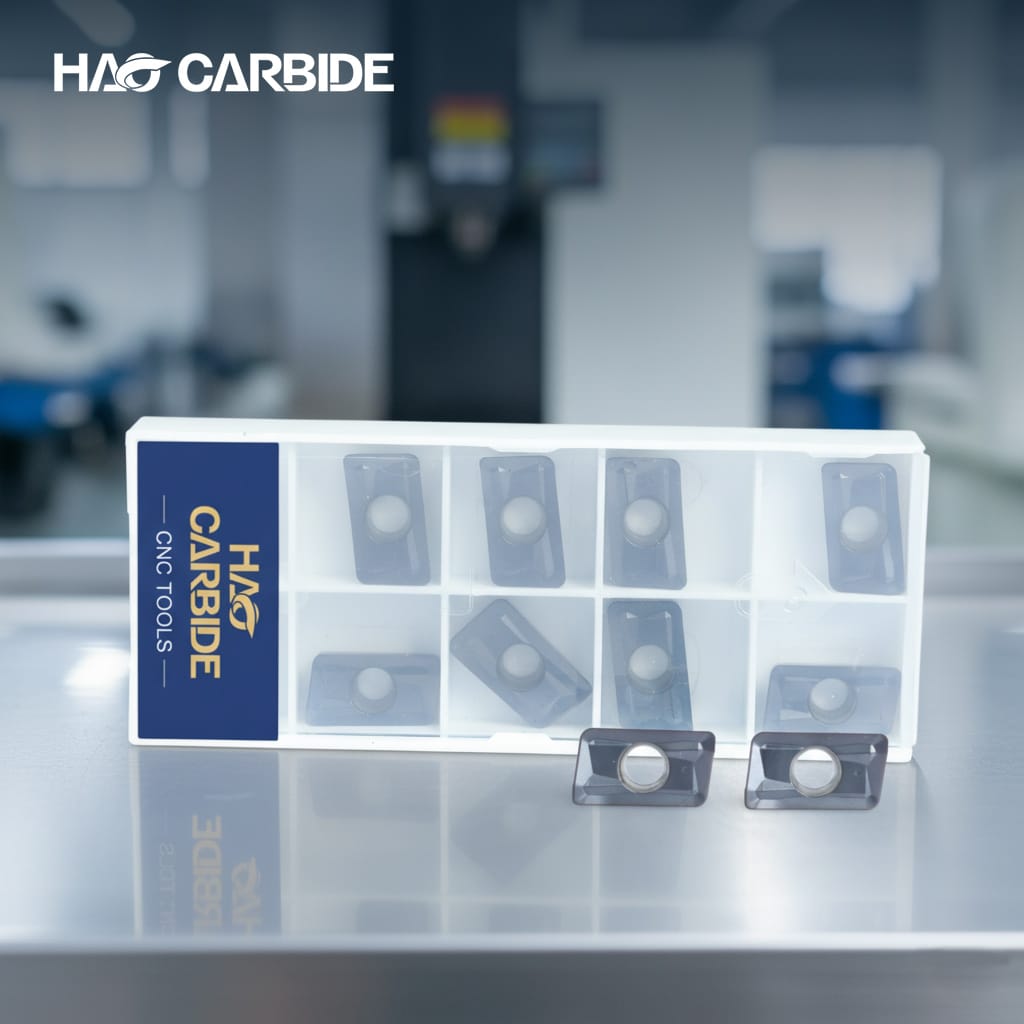

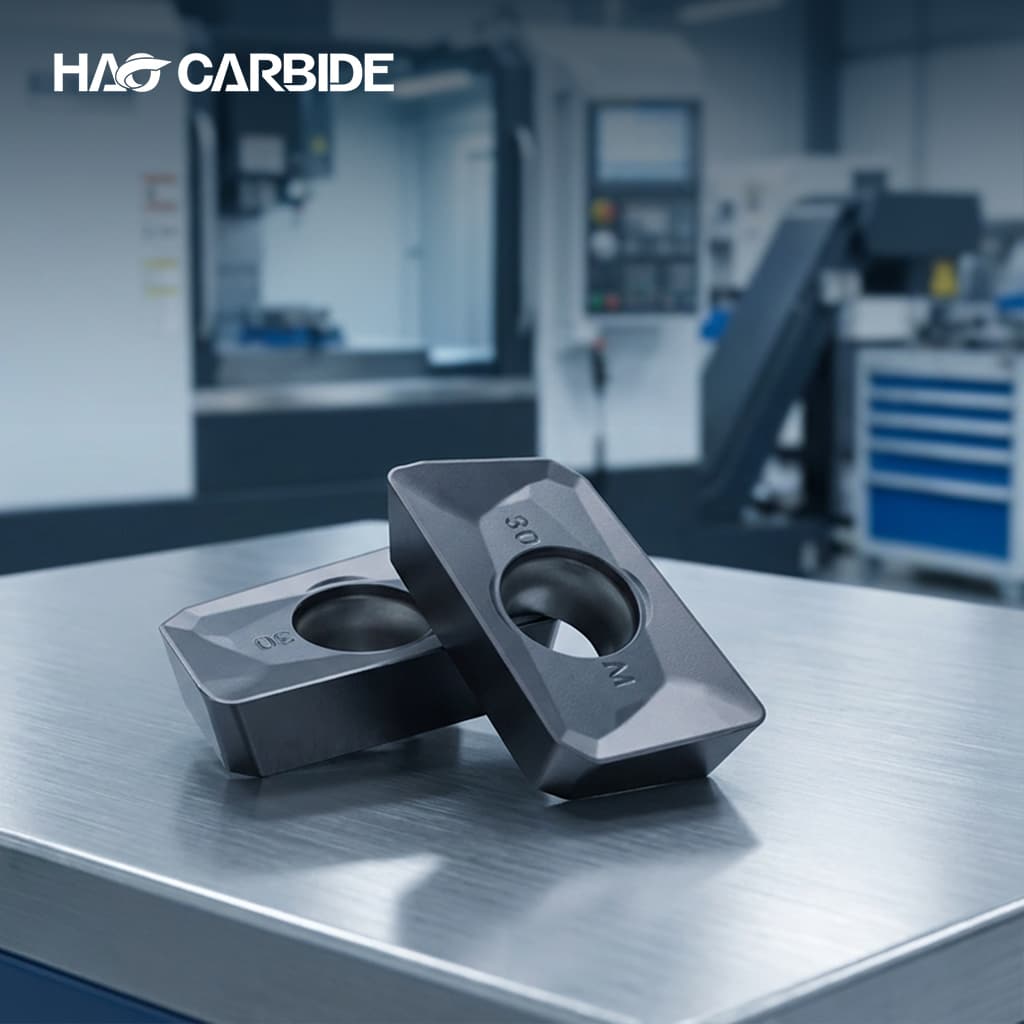

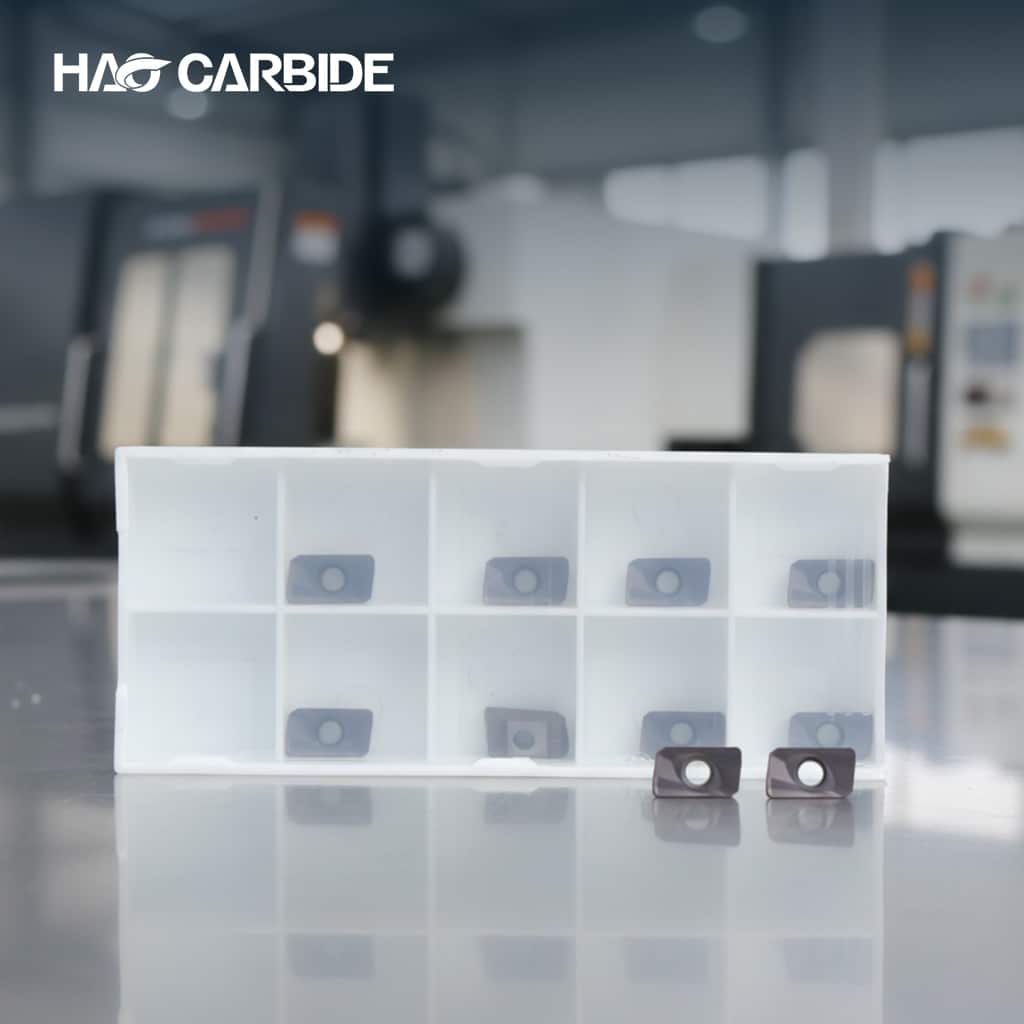

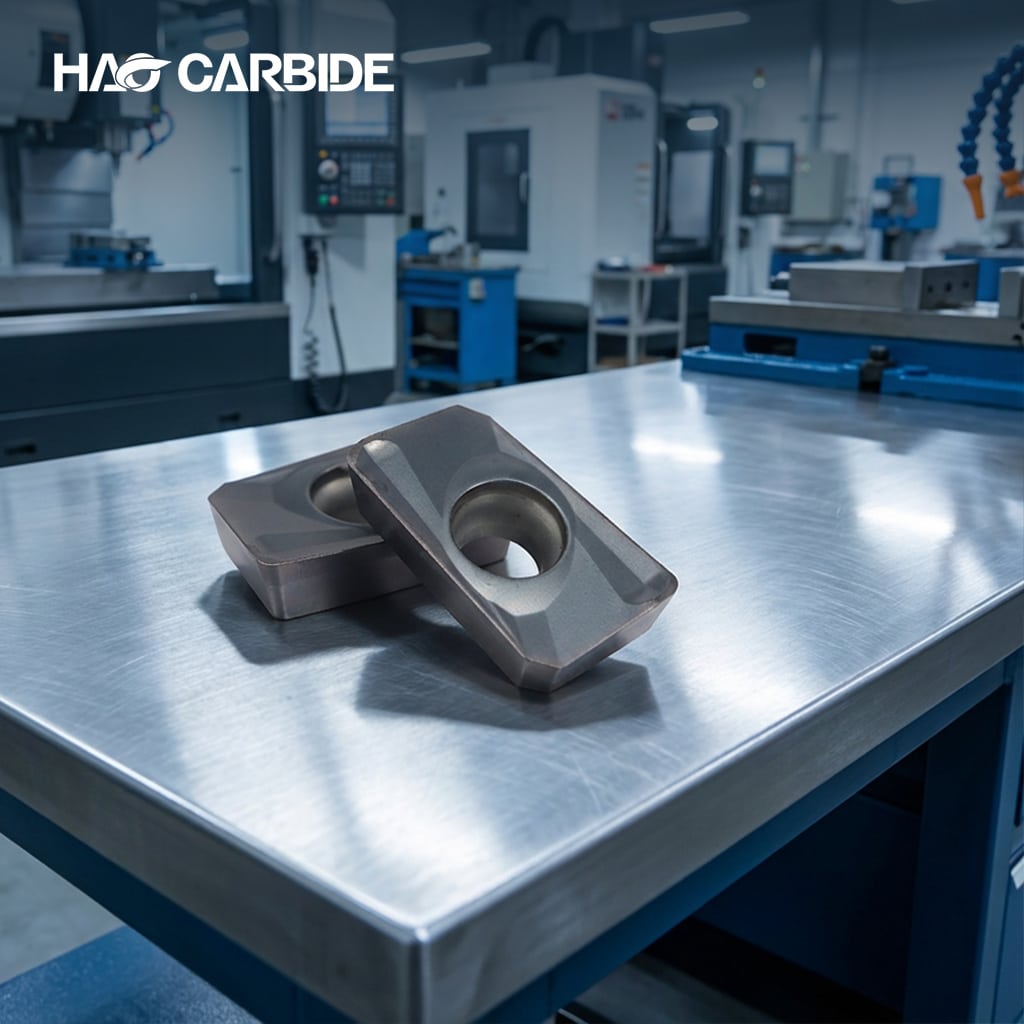

APMT Insert

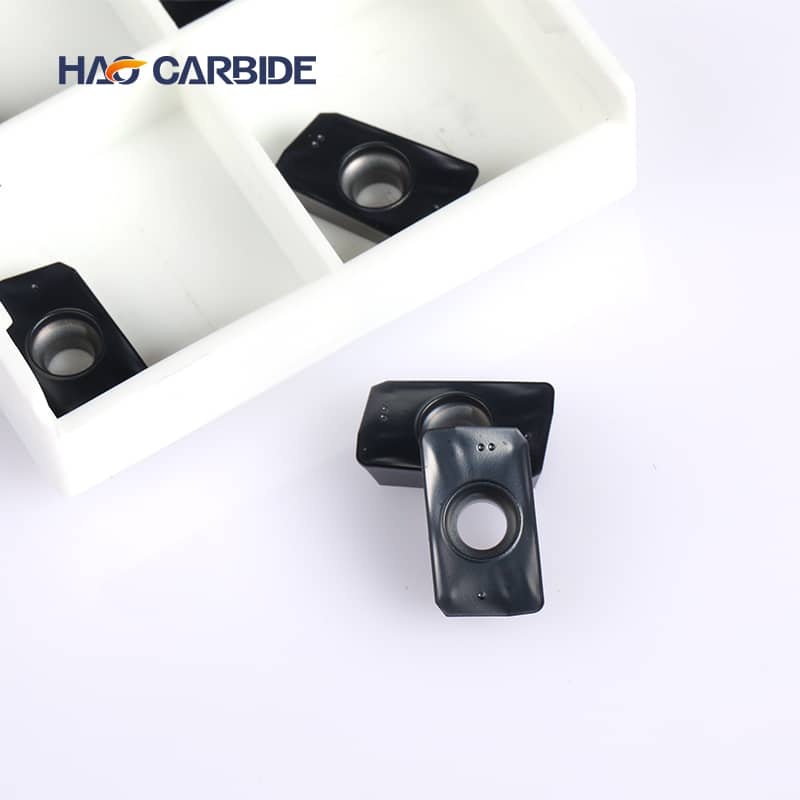

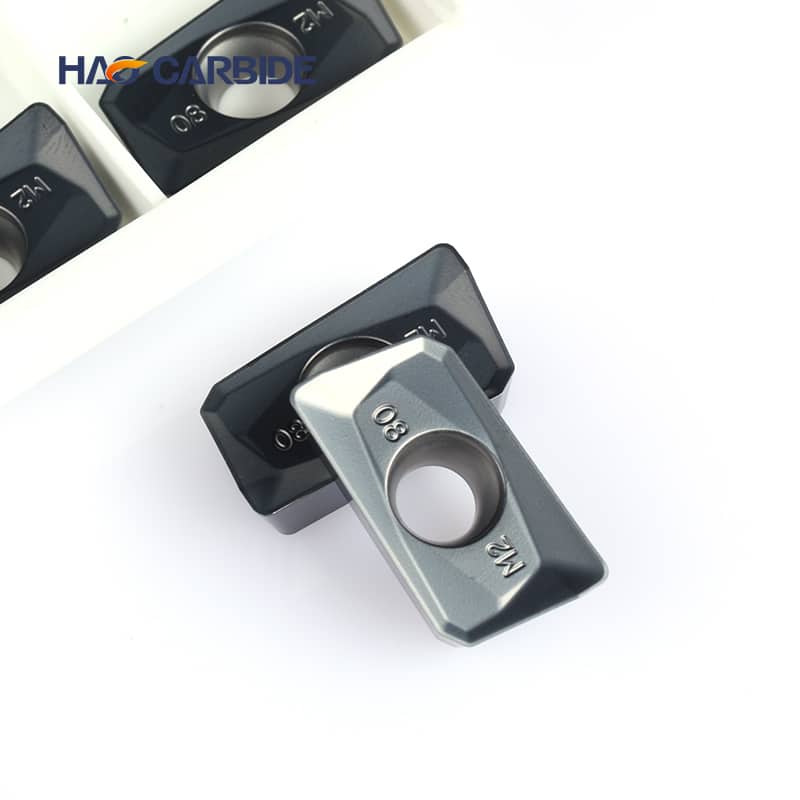

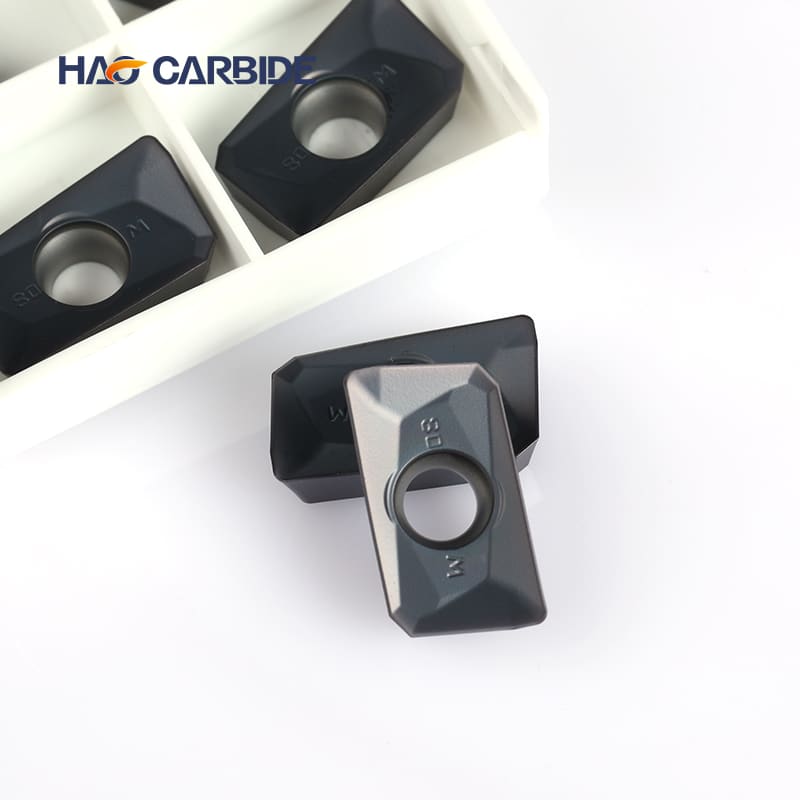

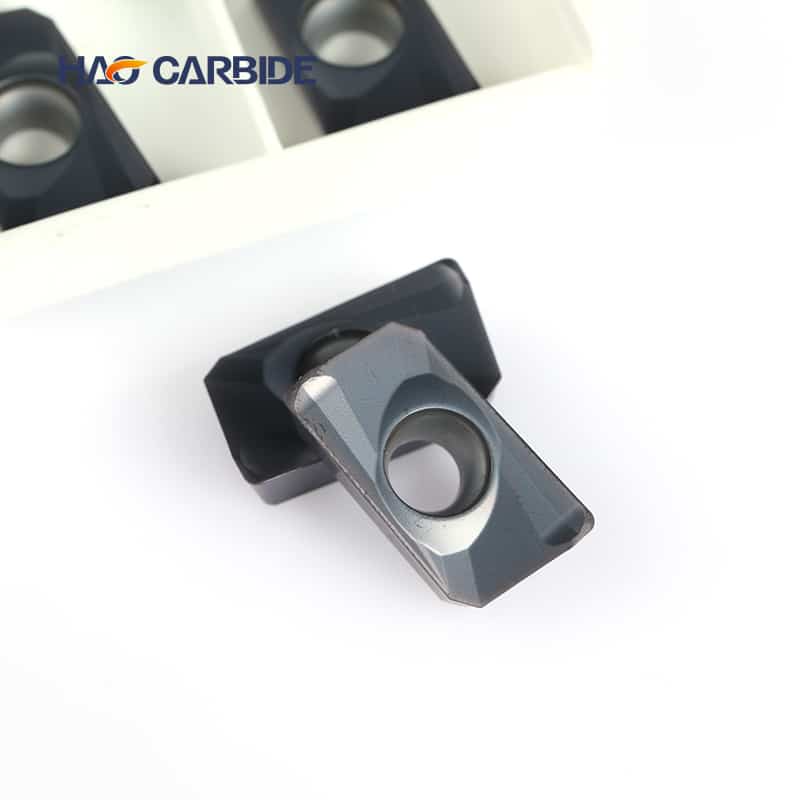

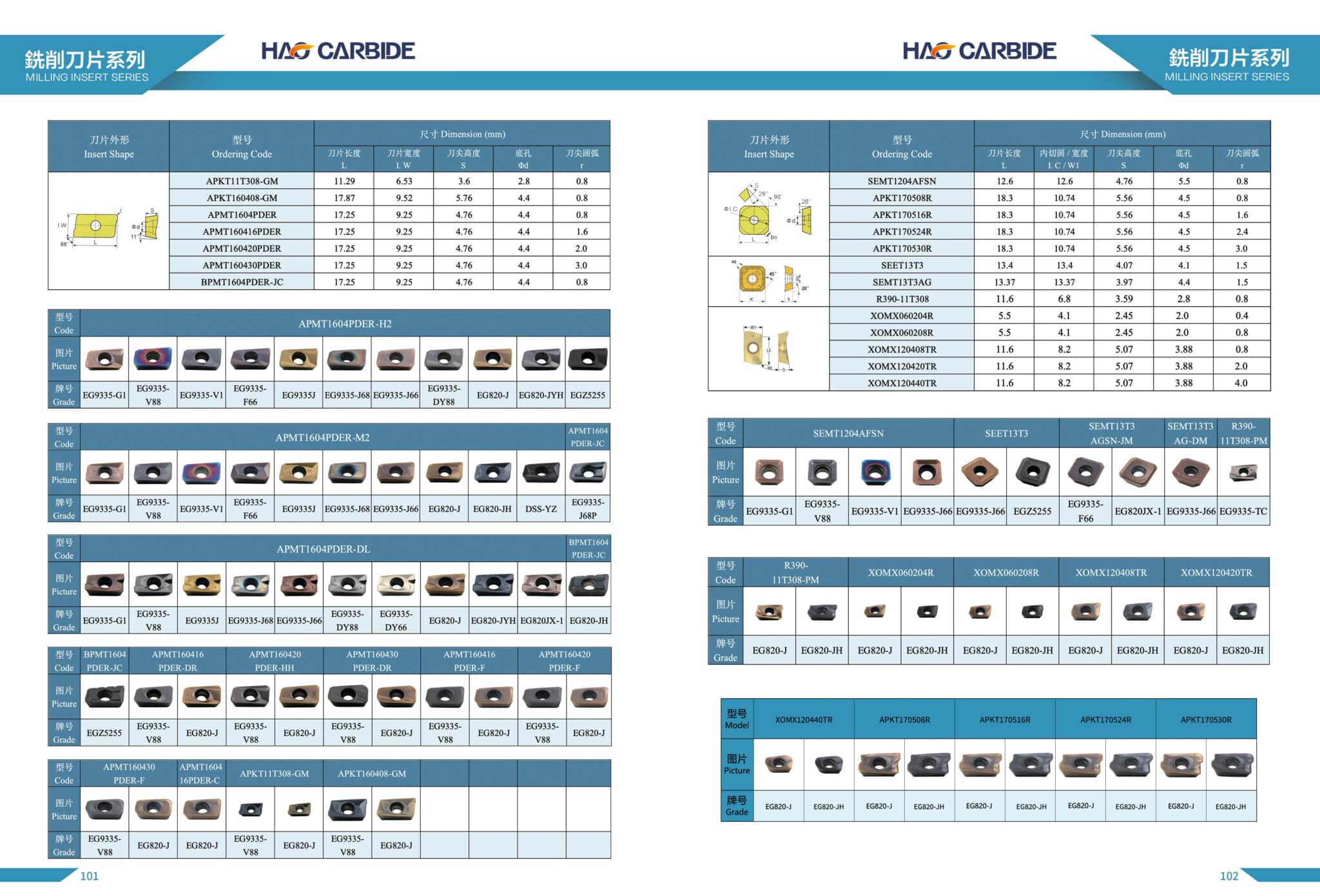

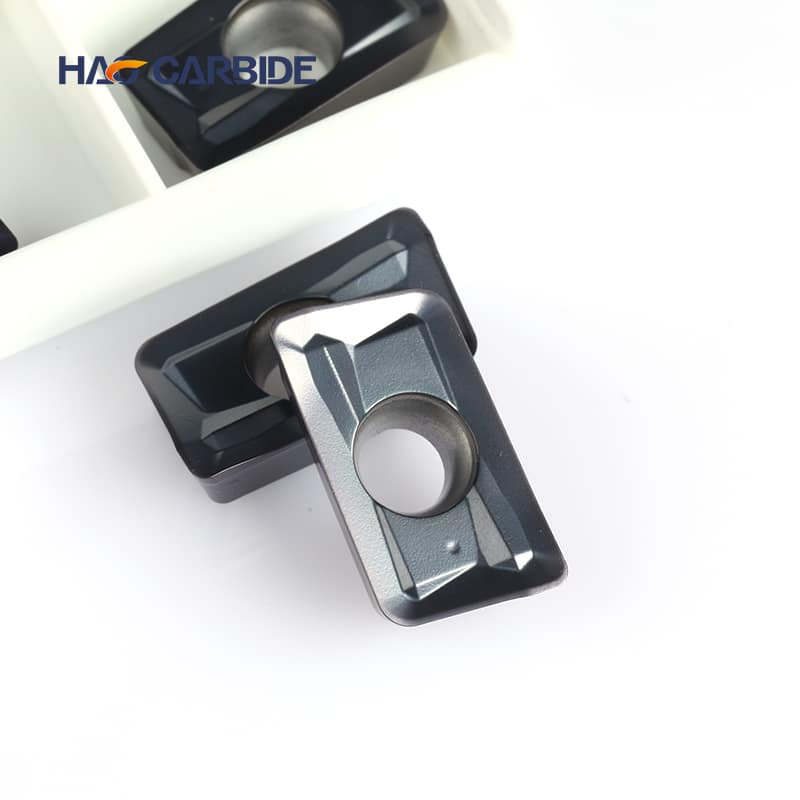

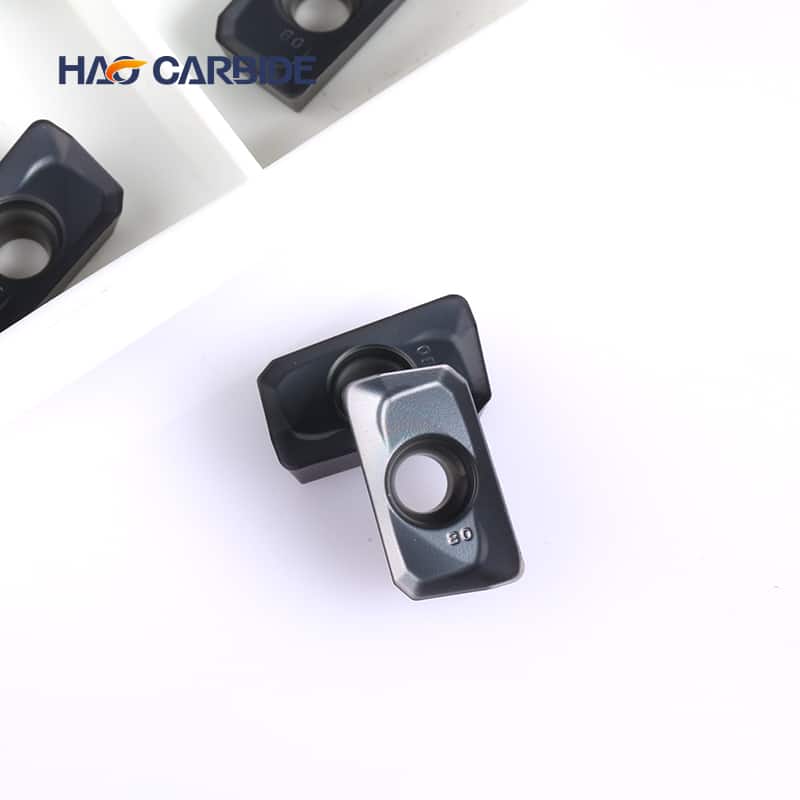

The APMT is a 90° square-shoulder indexable milling insert. The most common specifications are APMT1135 and APMT1604, designed to fit BAP300R and BAP400R milling cutters. Featuring a parallelogram structure, it offers four effective cutting edges across both sides. The standard corner radius is R0.8, and it comes equipped with a standard wear-resistant PVD coating.

Product Name: APMT Insert
Material: Tungsten carbide
Brand: HAO CARBIDE
Chip Breack: KZ/M2/PDER/DL/H2/PDR

Description

Processing Characteristics

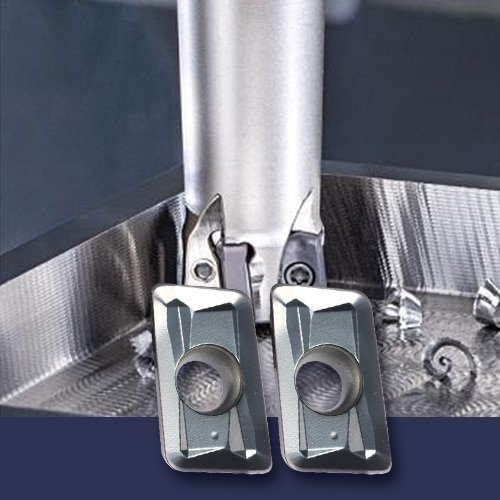

It features a 90° lead angle, ensuring excellent perpendicularity for right-angle sidewalls and step-milling operations. The optimized chip-breaker geometry minimizes cutting resistance, facilitates smooth chip evacuation, and provides strong vibration resistance. The cutting edge boasts high strength, making it highly resistant to intermittent cutting and edge chipping. It is suitable for machining carbon steel, cast iron, and pre-hardened mold steel (up to HRC55), and is ideal for both roughing and semi-finishing applications. Highly versatile, indexable, and cost-effective, it is well-suited for heavy-stock removal in mold making and general mechanical machining; however, due to its standard precision level, it is not recommended for machining ultra-hard materials or for high-precision finishing operations.

Additional information

Product Name

APMT Insert

Material

Tungsten carbide

Brand

HAO CARBIDE

Chip Breack

KZ/M2/PDER/DL/H2/PDR
