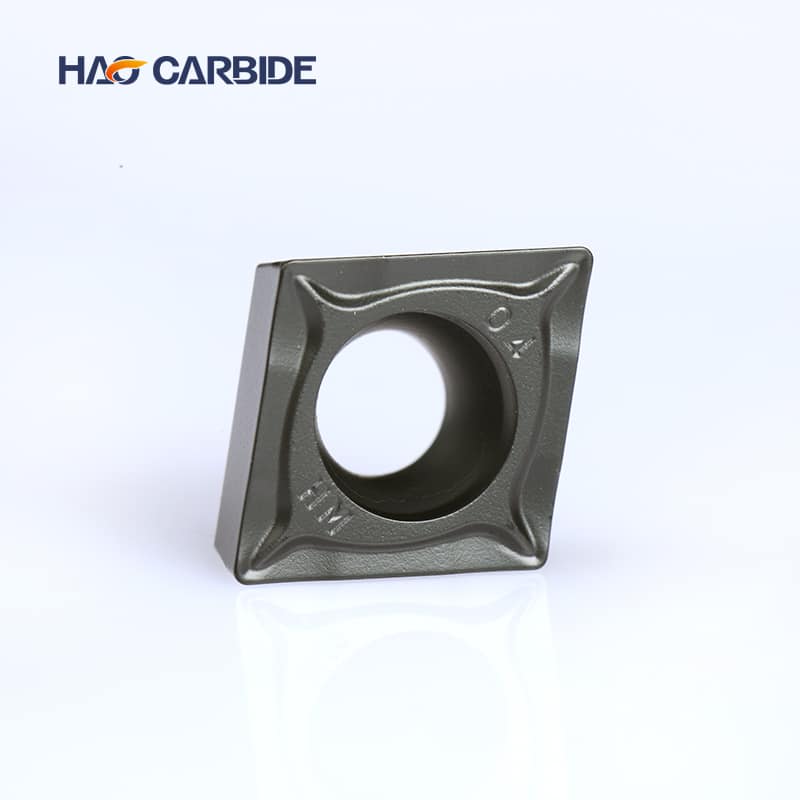

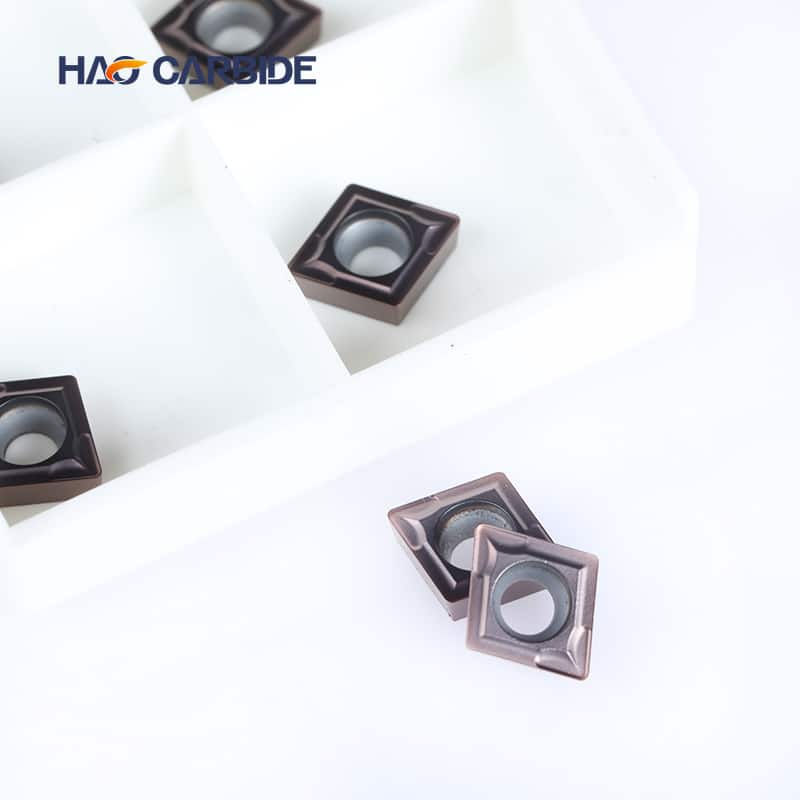

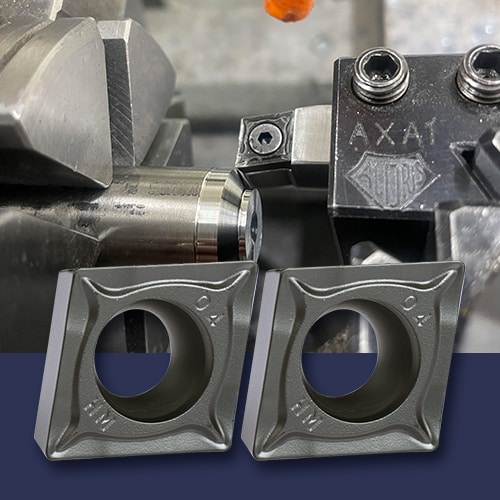

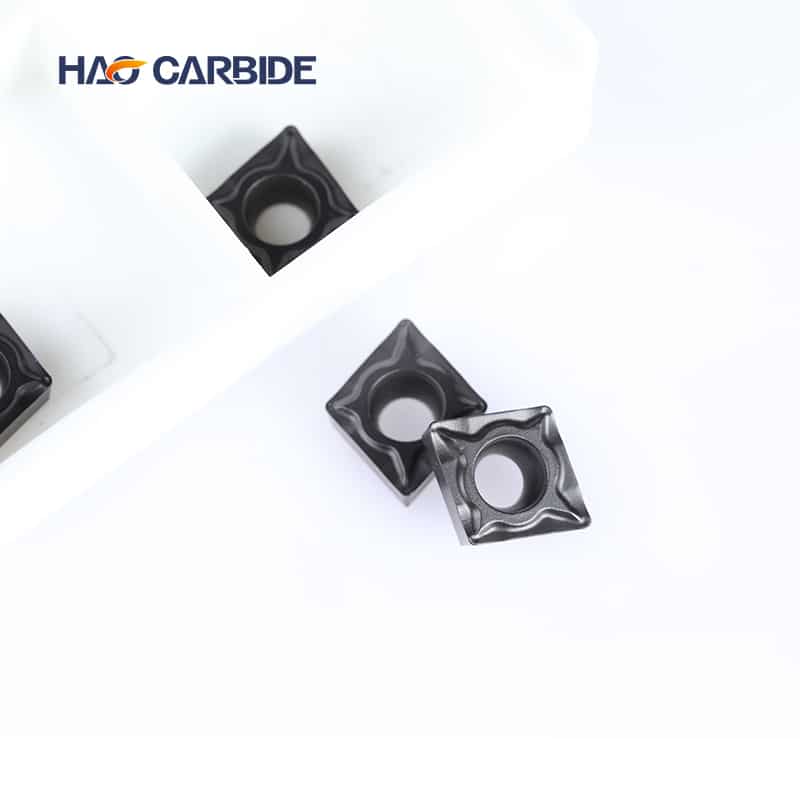

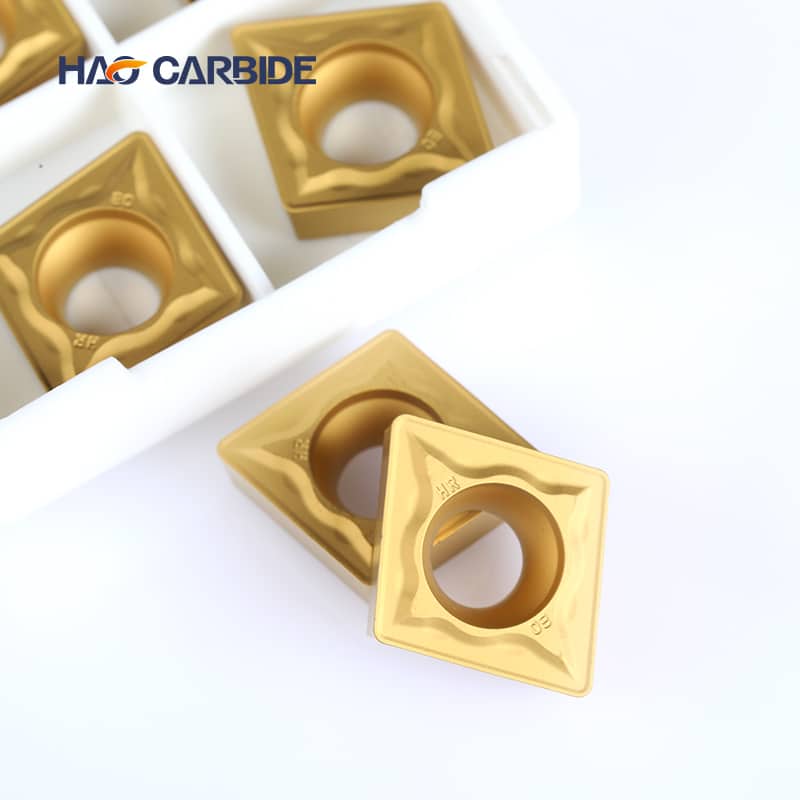

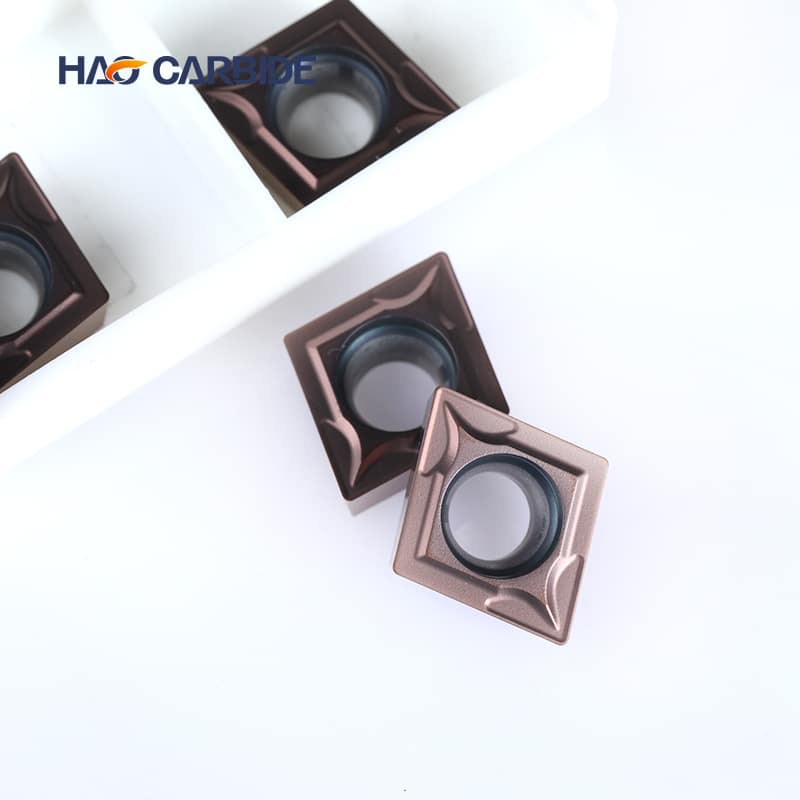

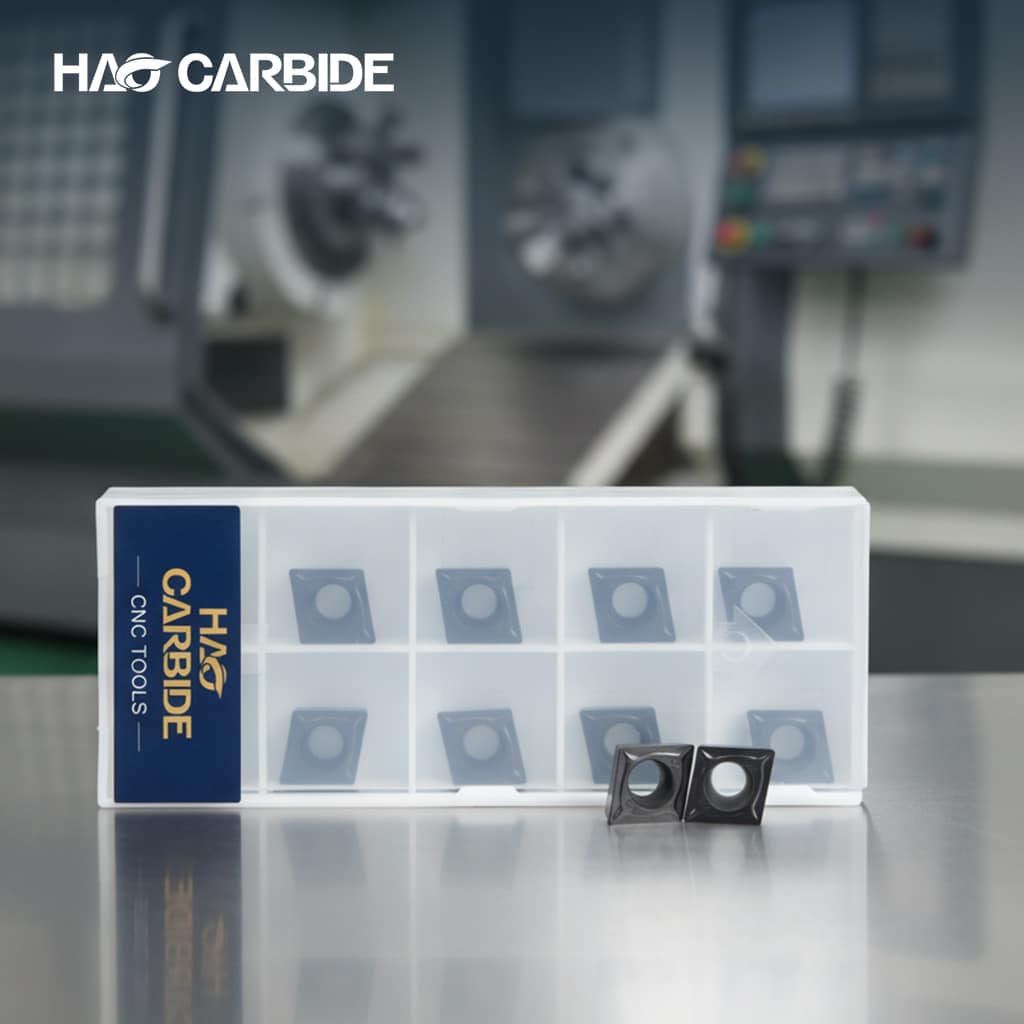

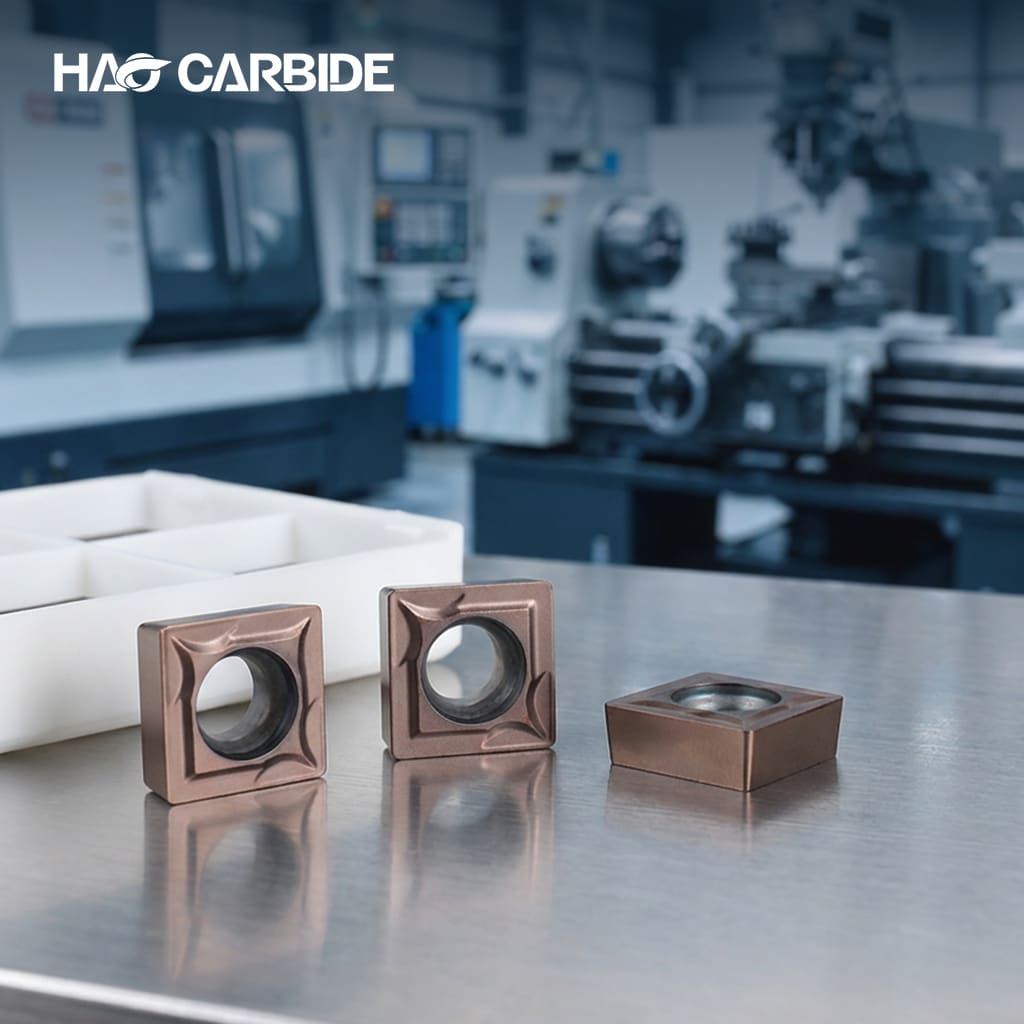

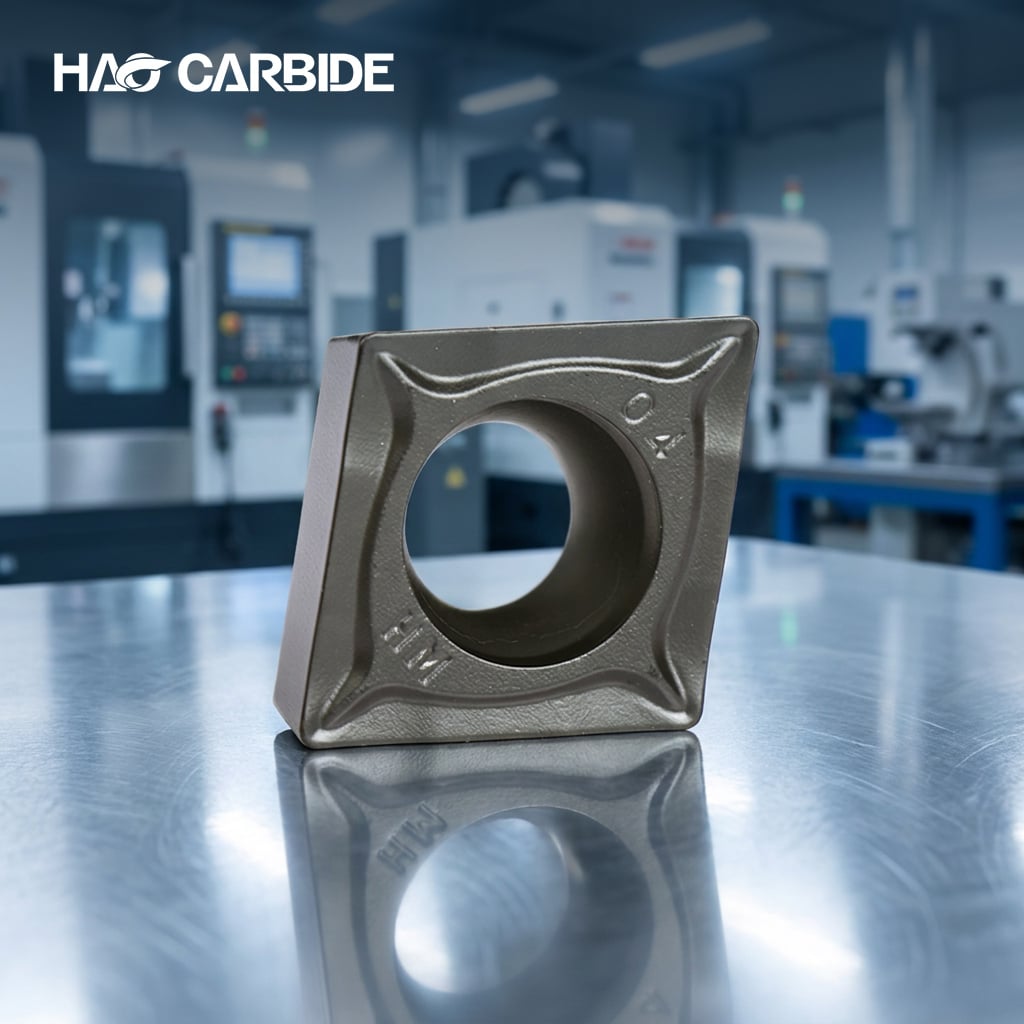

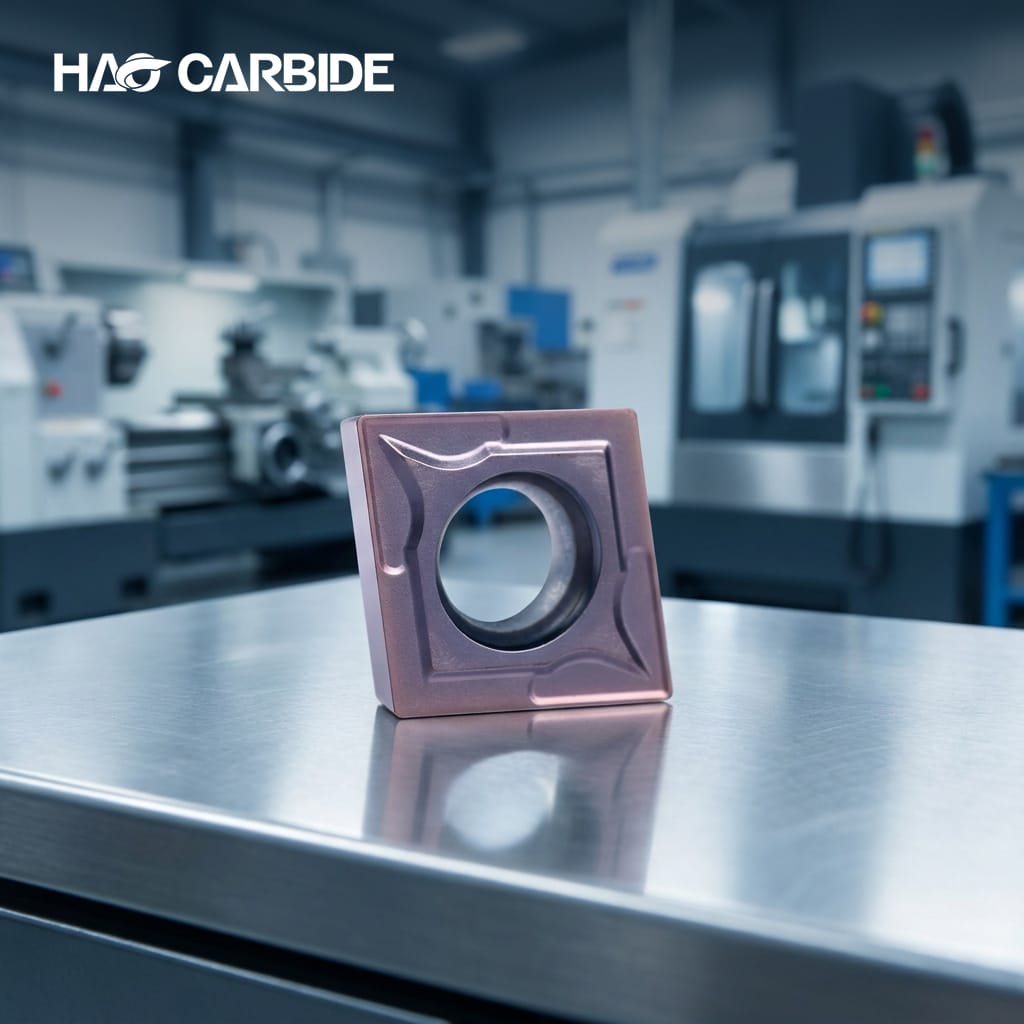

CCMT Insert

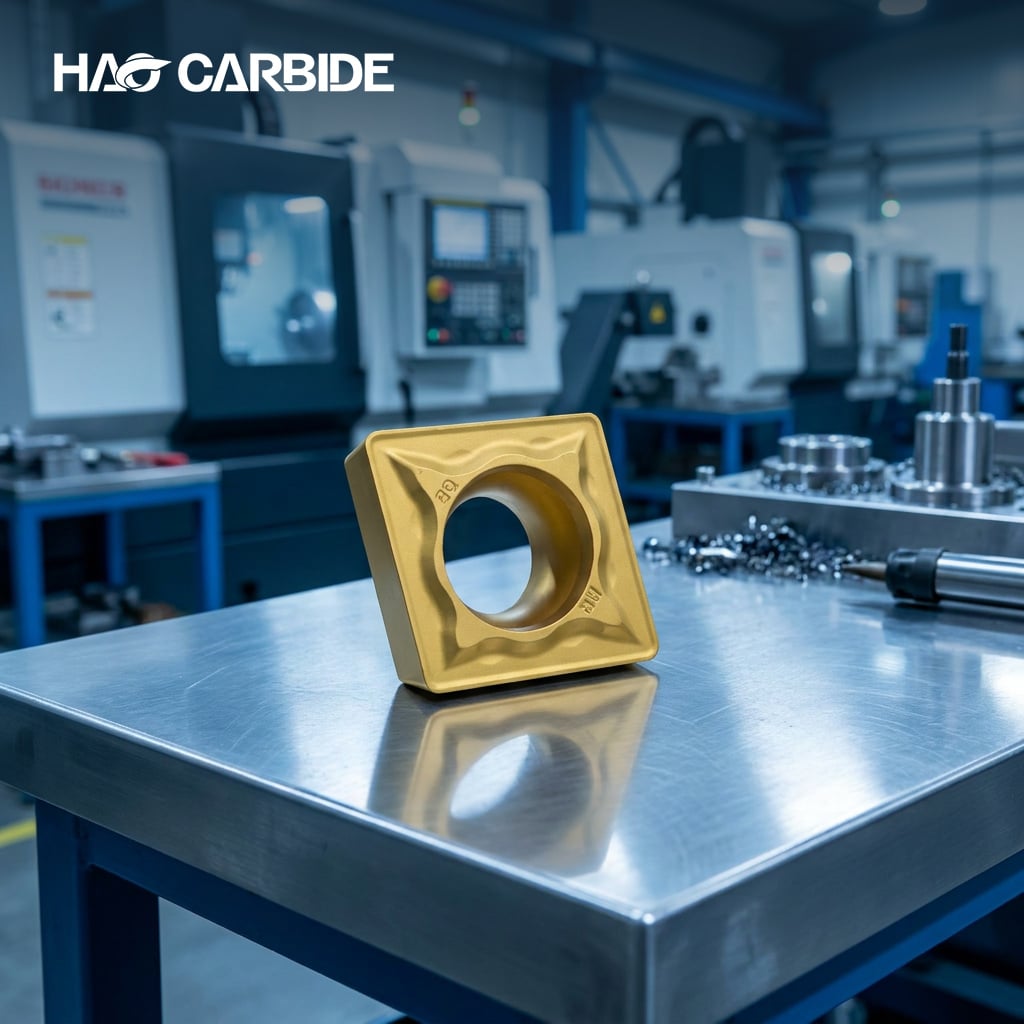

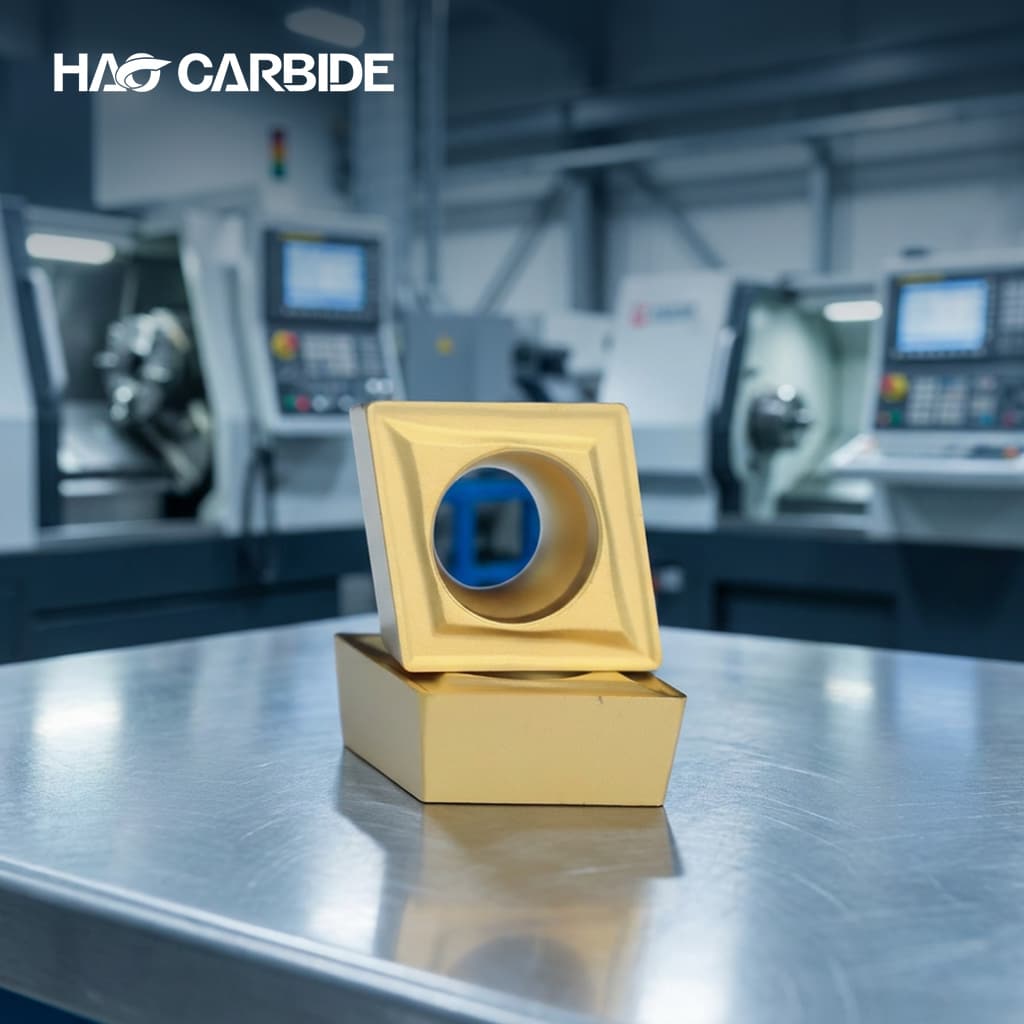

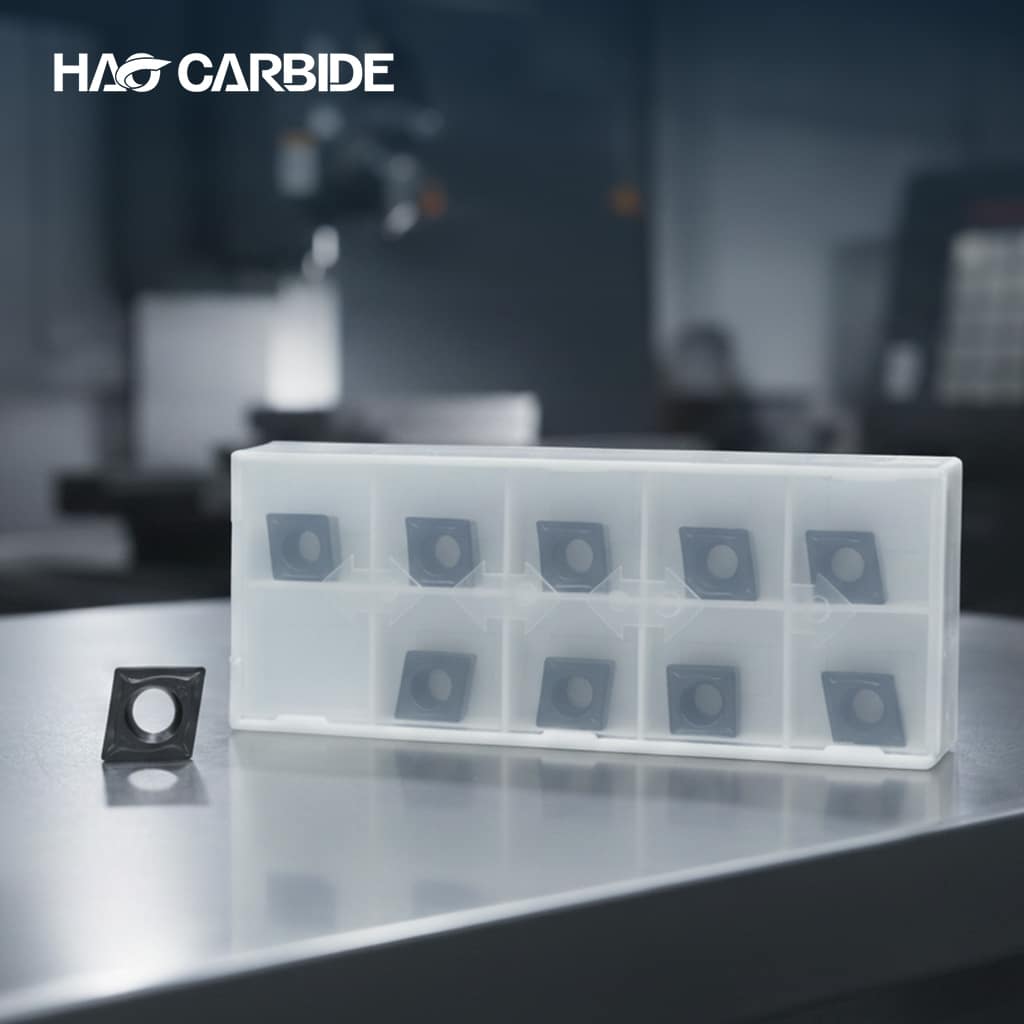

The CCMT is an ISO-standard 80° rhombic positive-angle indexable turning insert, featuring a 7° relief angle and a single-sided chipbreaker groove. Common specifications include CCMT0602, CCMT09T3, and CCMT1204, which are compatible with tool holders such as SCLCR and SCACR.

Product Name: CCMT Insert
Material: Tungsten carbide
Brand: HAO CARBIDE
Chip Break: HM/SL/HR

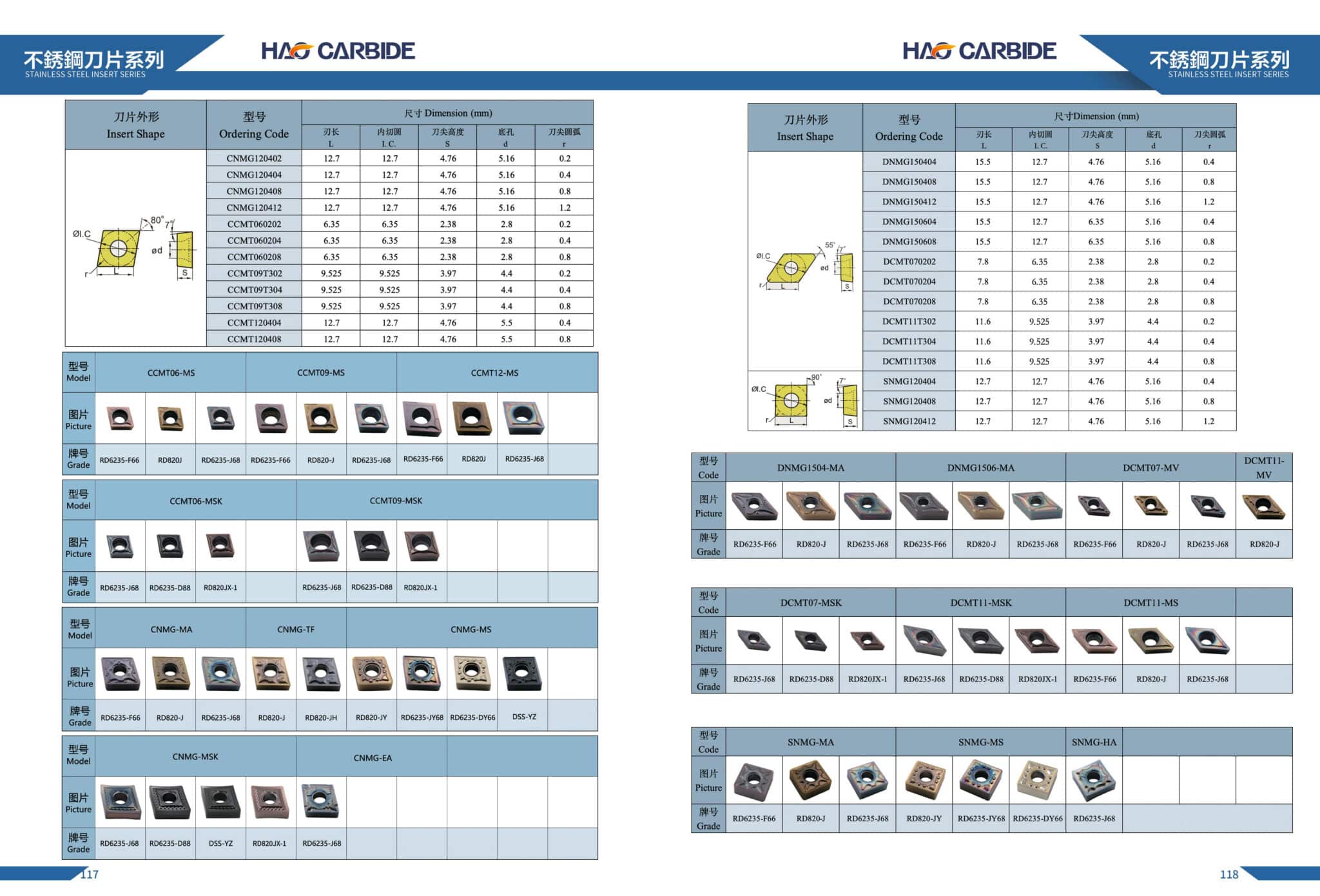

Size: 060204/08/12、09T304/08/12、120404/08/12

Description

Processing Characteristics

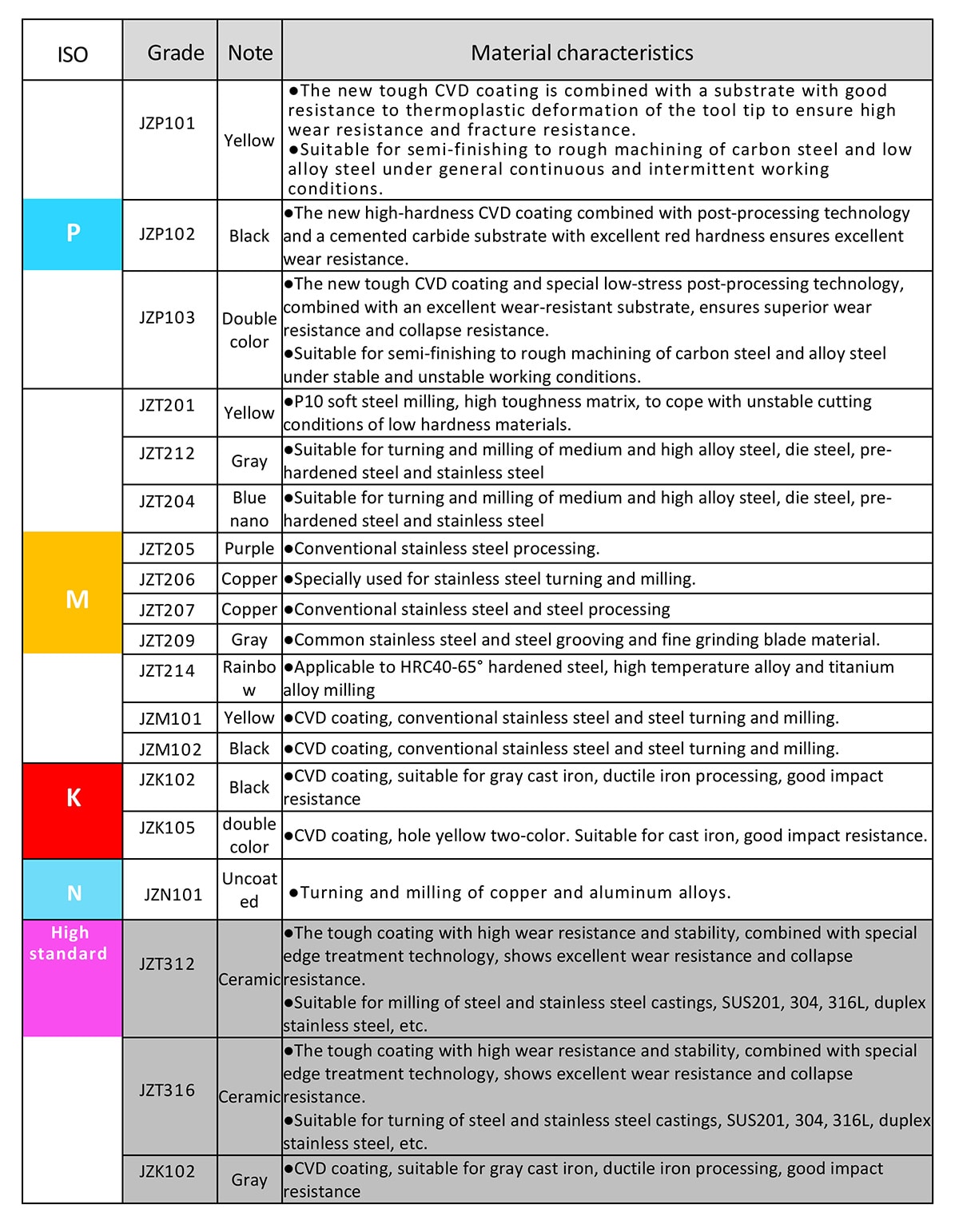

It offers two effective cutting edges on a single side, making it both economical and practical. Characterized by a large nose angle and high edge strength, it demonstrates excellent resistance to chipping and is well-suited for interrupted cutting operations. It facilitates light, free-cutting action with efficient chip evacuation, making it suitable for machining steel, stainless steel, cast iron, and pre-hardened steels (up to HRC 45). It is primarily utilized for semi-finishing and finishing operations on external diameters, faces, and internal bores. Constructed with an ultra-fine-grain substrate and enhanced by PVD/CVD coatings, it exhibits superior wear resistance and thermal stability, ensuring consistent dimensional accuracy. Note: It is not recommended for heavy-duty roughing applications or for heavy-cut machining of ultra-hard materials (HRC 55+).

Additional information

Product Name

CCMT Insert

Material

Tungsten carbide

Brand

HAO CARBIDE

Chip Break

HM/SL/HR

Size

060204/08/12, 09T304/08/12, 120404/08/12
