Description
Processing Characteristics
Smooth Cutting: The double-flute structure ensures balanced force distribution, minimizing vibration and edge chipping—ideal for high-precision applications such as intricate cutouts and relief carving.
Efficient Chip Evacuation: The spiral flute design facilitates rapid chip removal, preventing chip accumulation and tool overheating.
Low Noise & Smoke-Free: The optimized design effectively reduces noise, smoke, and dust generation during machining operations.

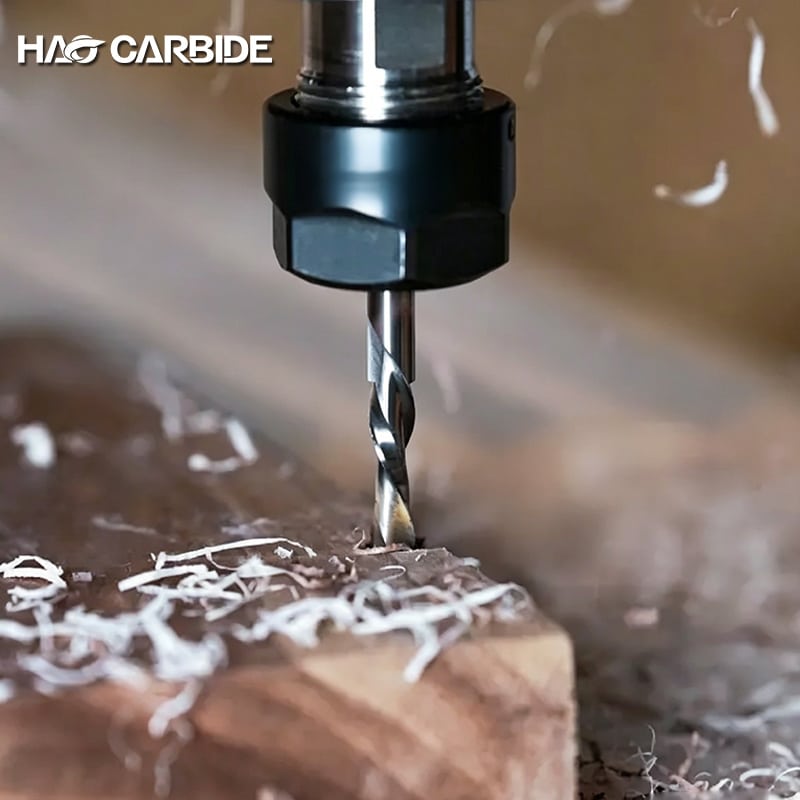

Versatile Application: Suitable for cutting and engraving a wide range of materials, including acrylic, MDF, hardwoods, PVC, and aluminum-plastic composite panels.
 |
|||
|---|---|---|---|

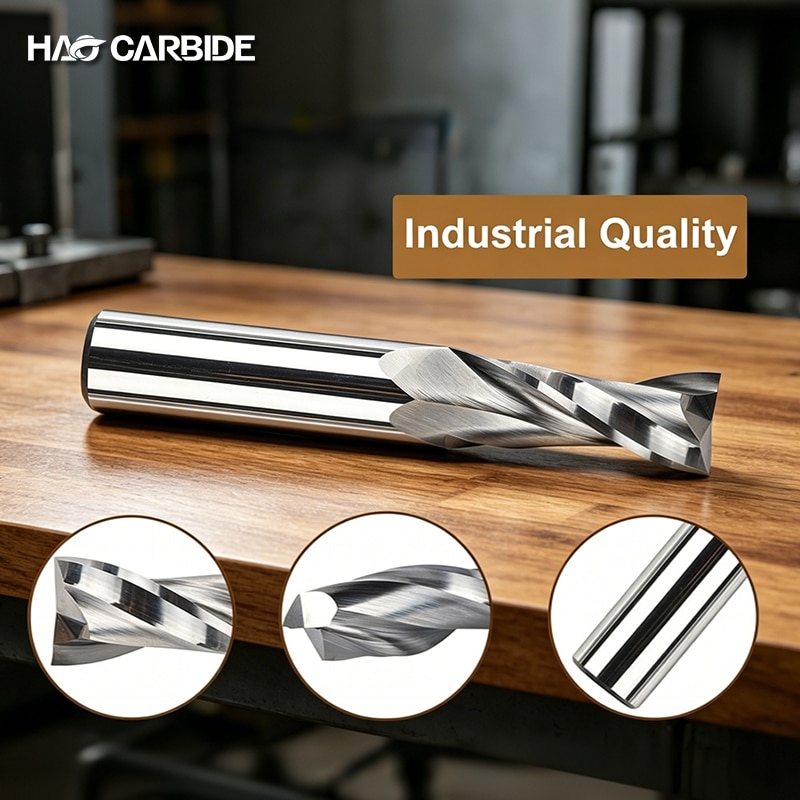

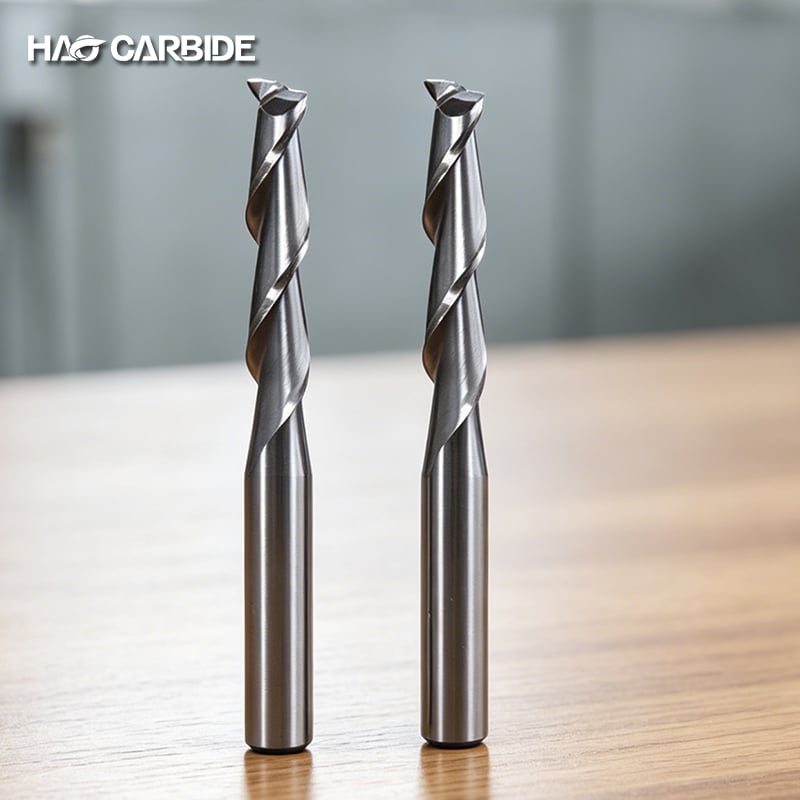

| 2F SPIRAL FLAT END MILL | |||
| Applicable: Acrylic, PVC, Hardwood Features: Imported tungsten steel, high abrasion resistance, anti-broken. Mainly applies to: acrylic and density wood cutting. | |||

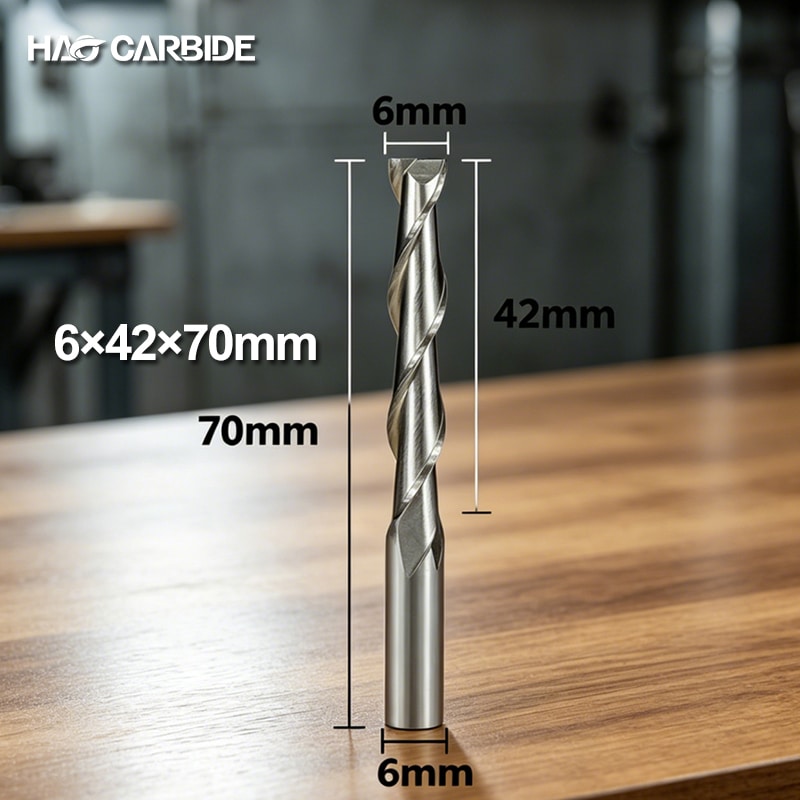

| SHK | CED | CEL | OVL |
| 3.175 | 3.175 | 12 | 38 |
| 3.175 | 3.175 | 15 | 38 |
| 3.175 | 3.175 | 17 | 38 |
| 3.175 | 3.175 | 22 | 45 |
| 3.175 | 3.175 | 28 | 45 |
| 3.175 | 3.175 | 32 | 55 |
| 3.175 | 1 | 4 | 38 |
| 3.175 | 1.5 | 7 | 38 |
| 3.175 | 2 | 8 | 38 |
| 3.175 | 2 | 12 | 38 |
| 3.175 | 2 | 17 | 38 |
| 3.175 | 2 | 22 | 45 |
| 3.175 | 2.5 | 8 | 38 |
| 3.175 | 2.5 | 12 | 38 |
| 3.175 | 2.5 | 17 | 38 |
| 3.175 | 2.5 | 22 | 45 |
| 4 | 4 | 12 | 45 |
| 4 | 4 | 17 | 45 |
| 4 | 4 | 22 | 45 |
| 4 | 4 | 25 | 45 |
| 4 | 4 | 28 | 50 |
| 4 | 4 | 32 | 55 |
| 6 | 6 | 12 | 50 |
| 6 | 6 | 17 | 50 |
| 6 | 6 | 22 | 50 |
| 6 | 6 | 25 | 50 |
| 6 | 6 | 28 | 60 |
| 6 | 6 | 32 | 60 |
| 8 | 8 | 25 | 60 |
| 8 | 8 | 32 | 60 |
| 8 | 8 | 42 | 75 |
| 8 | 8 | 52 | 90 |
| 10 | 10 | 32 | 75 |
| 10 | 10 | 42 | 80 |
| 10 | 10 | 52 | 100 |
| 10 | 10 | 62 | 110 |
| NON-STANDARD SIZE CAN BE CUSTOMIZED | |||
