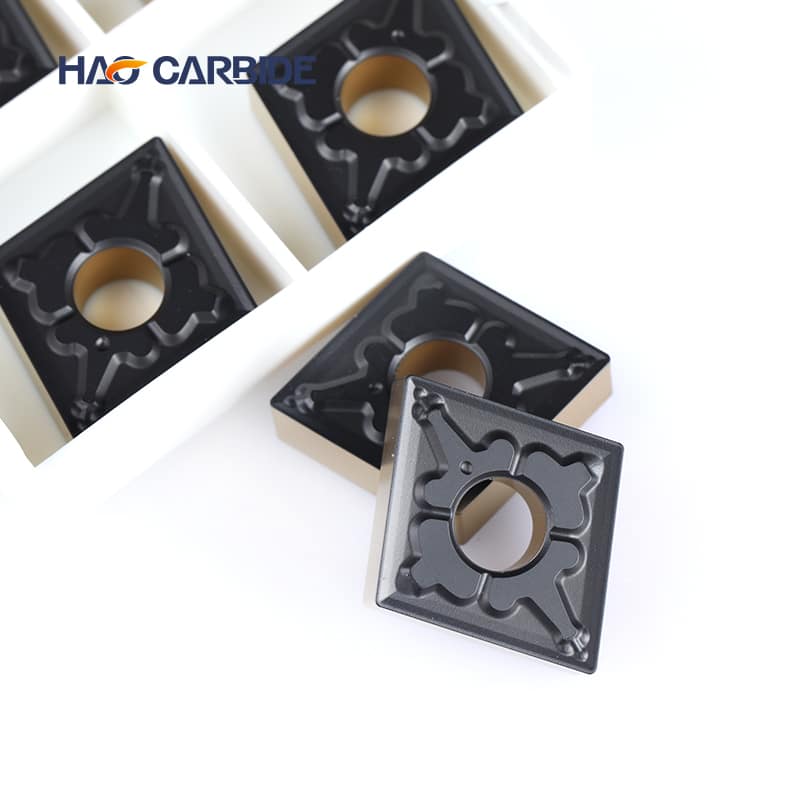

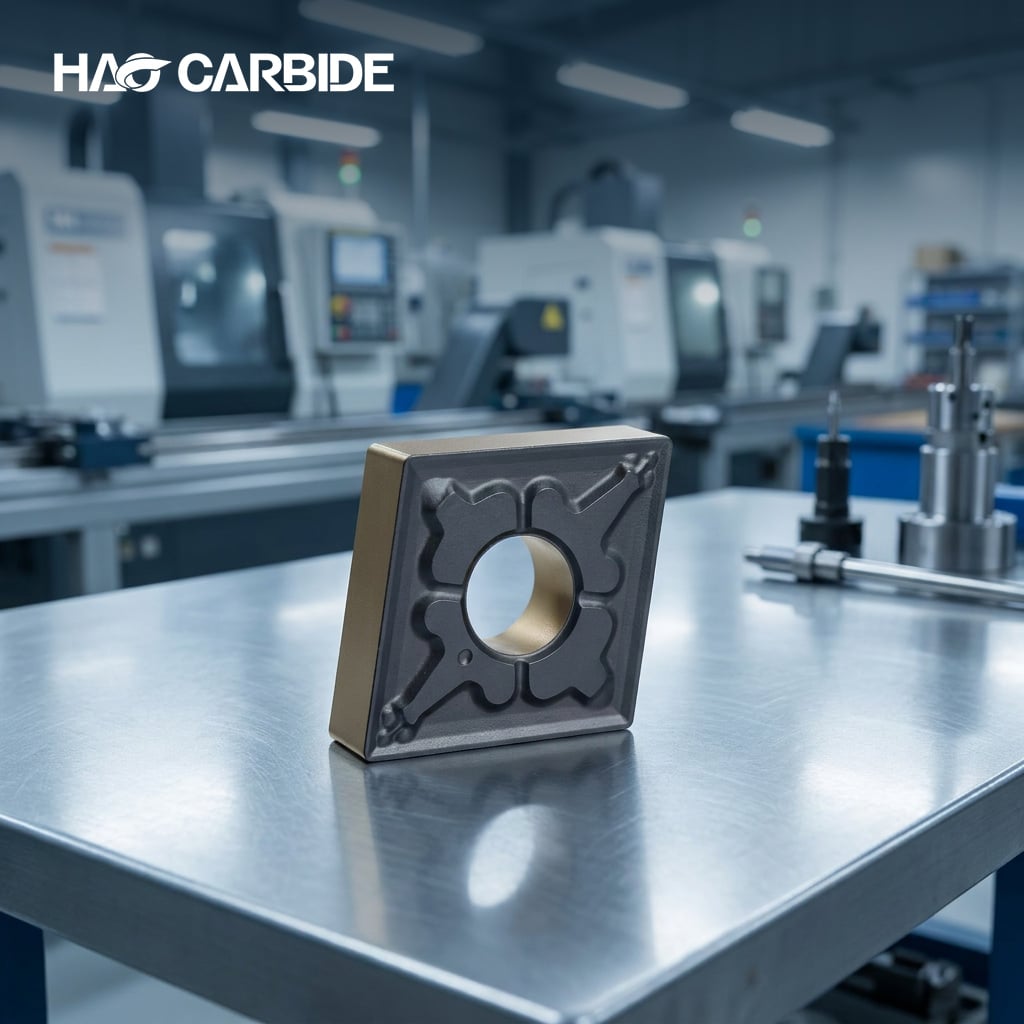

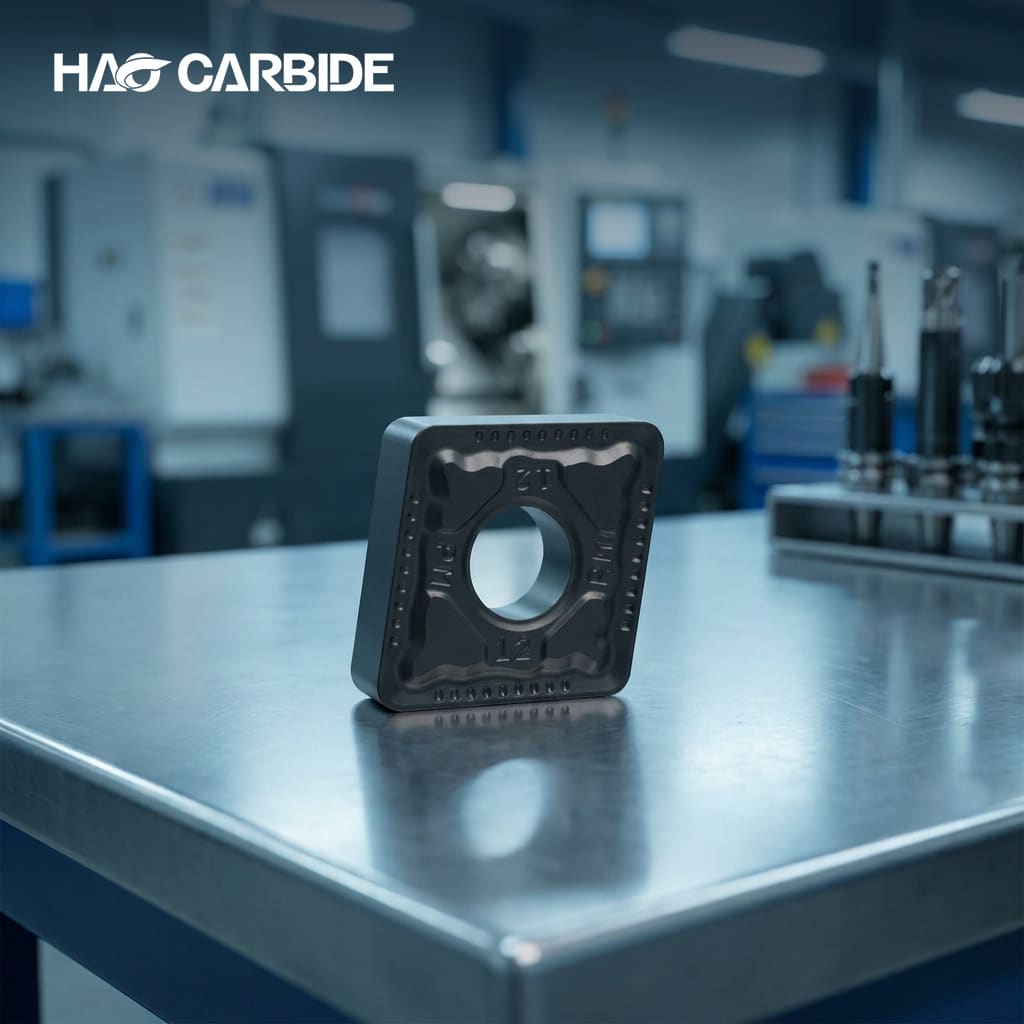

CNMG Insert

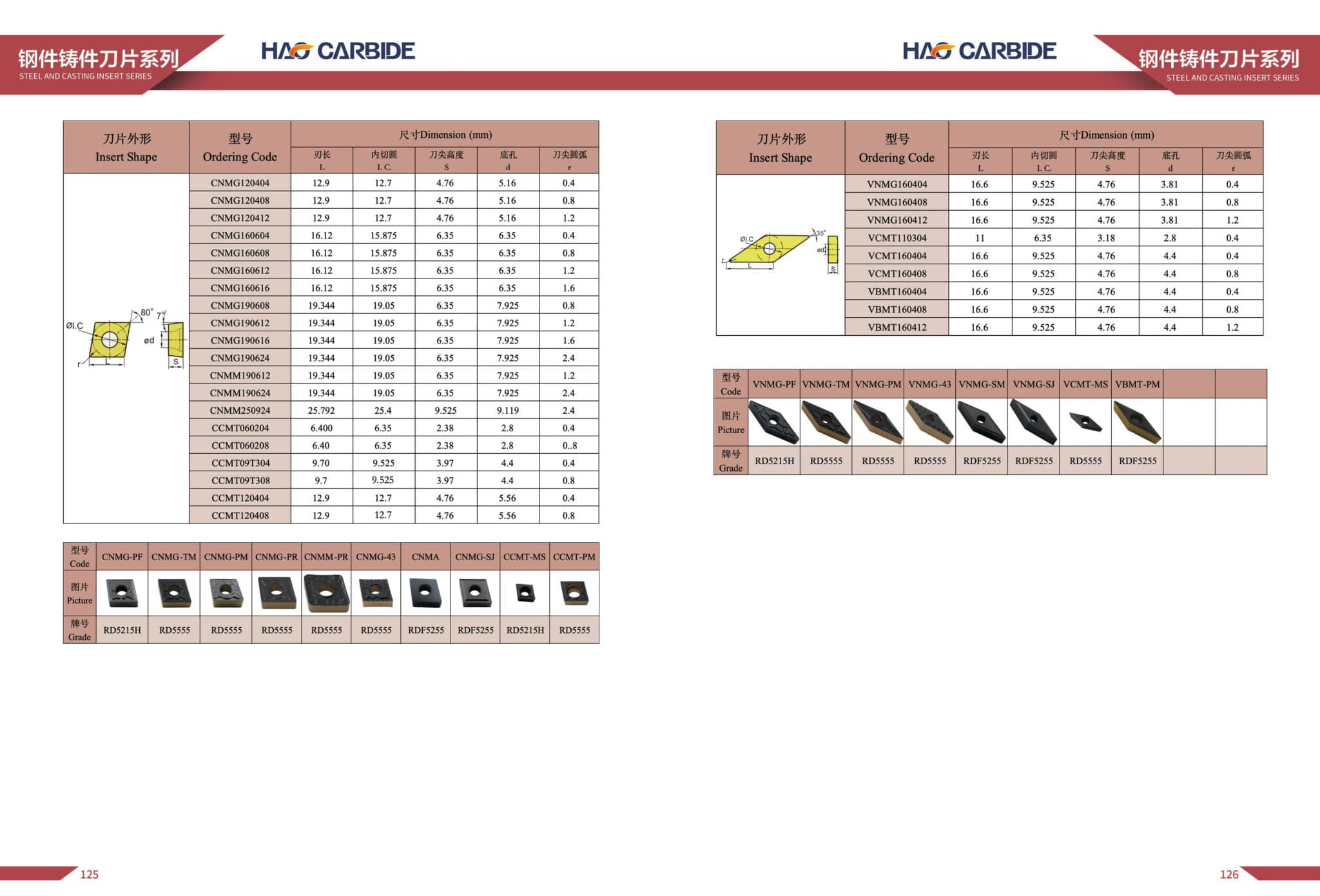

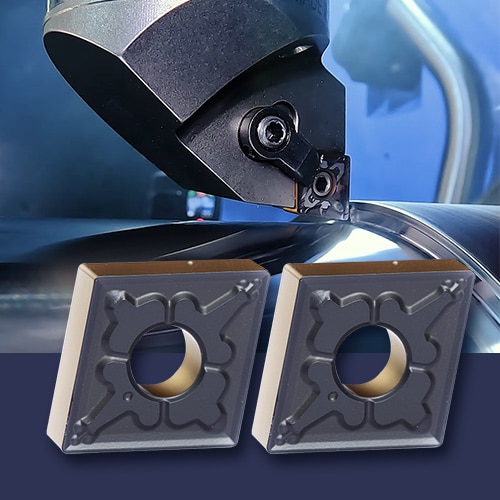

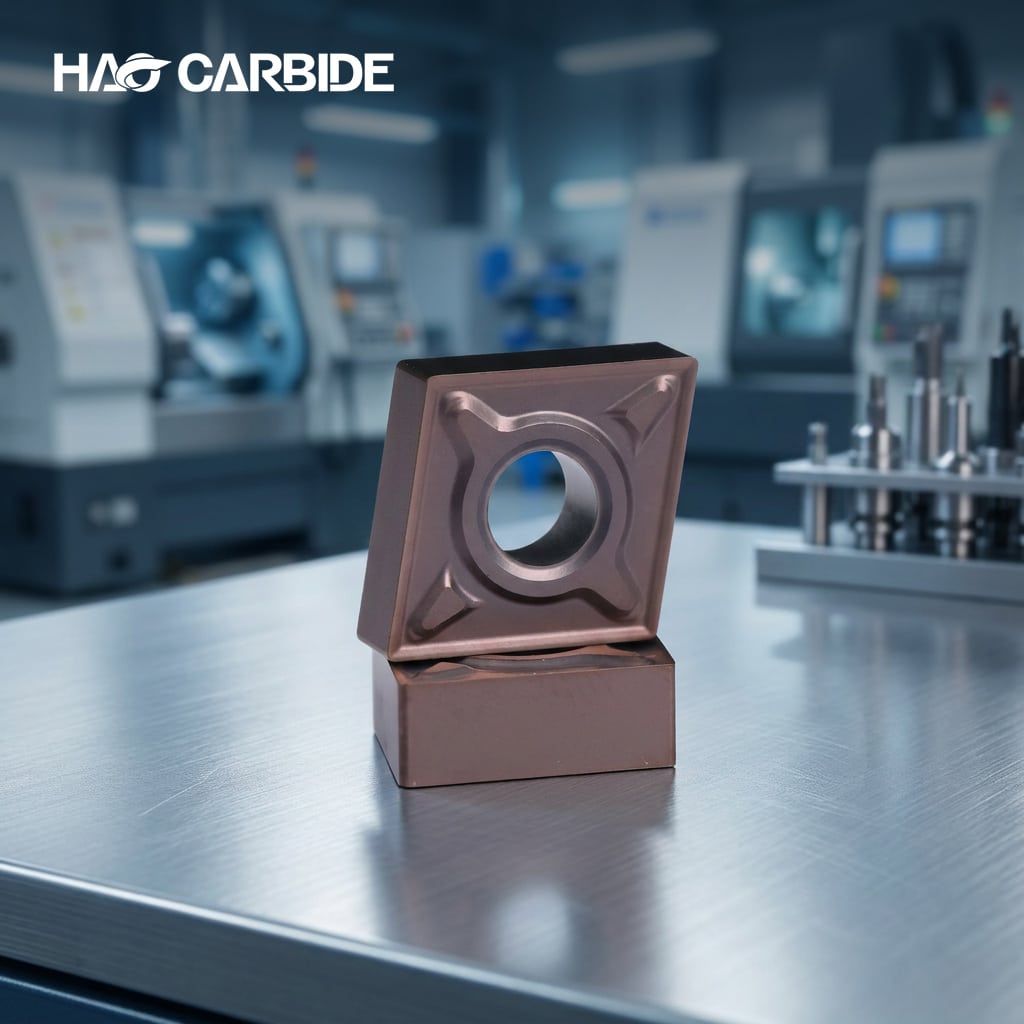

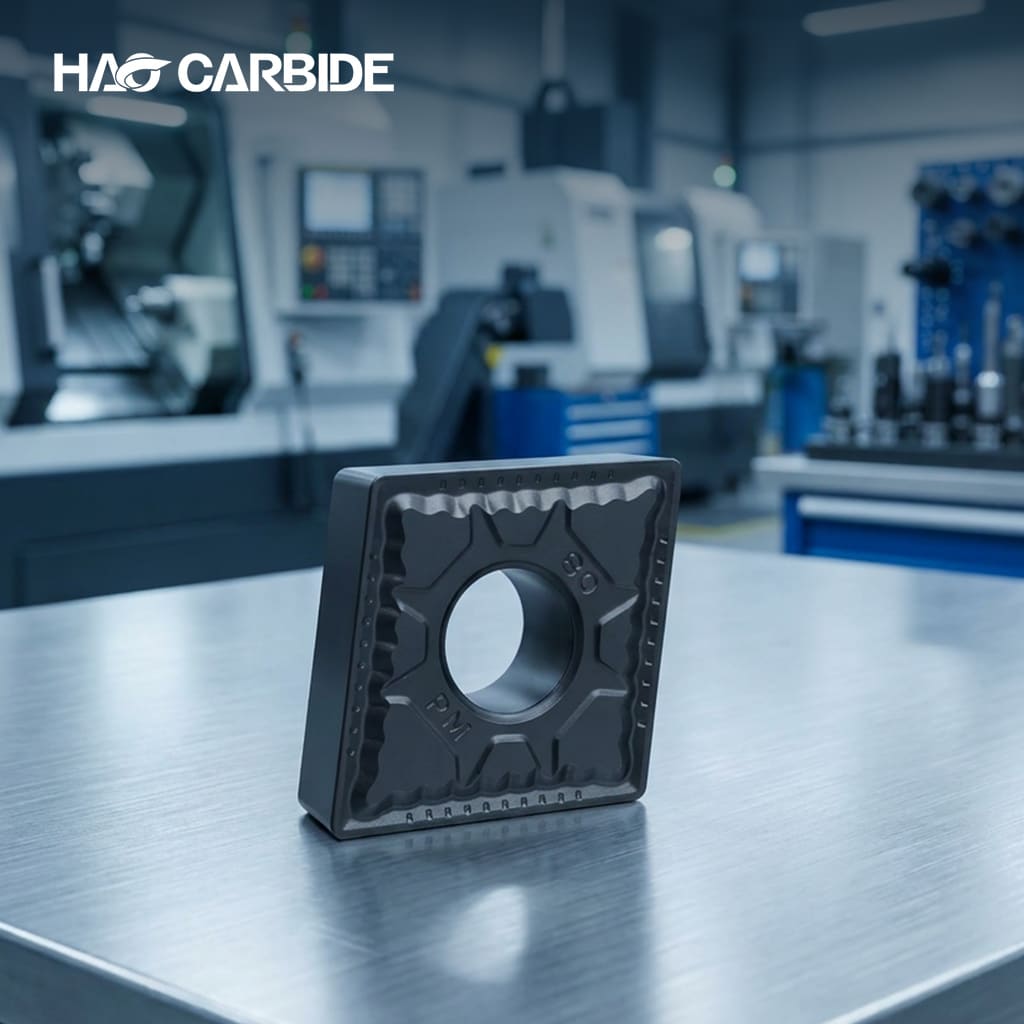

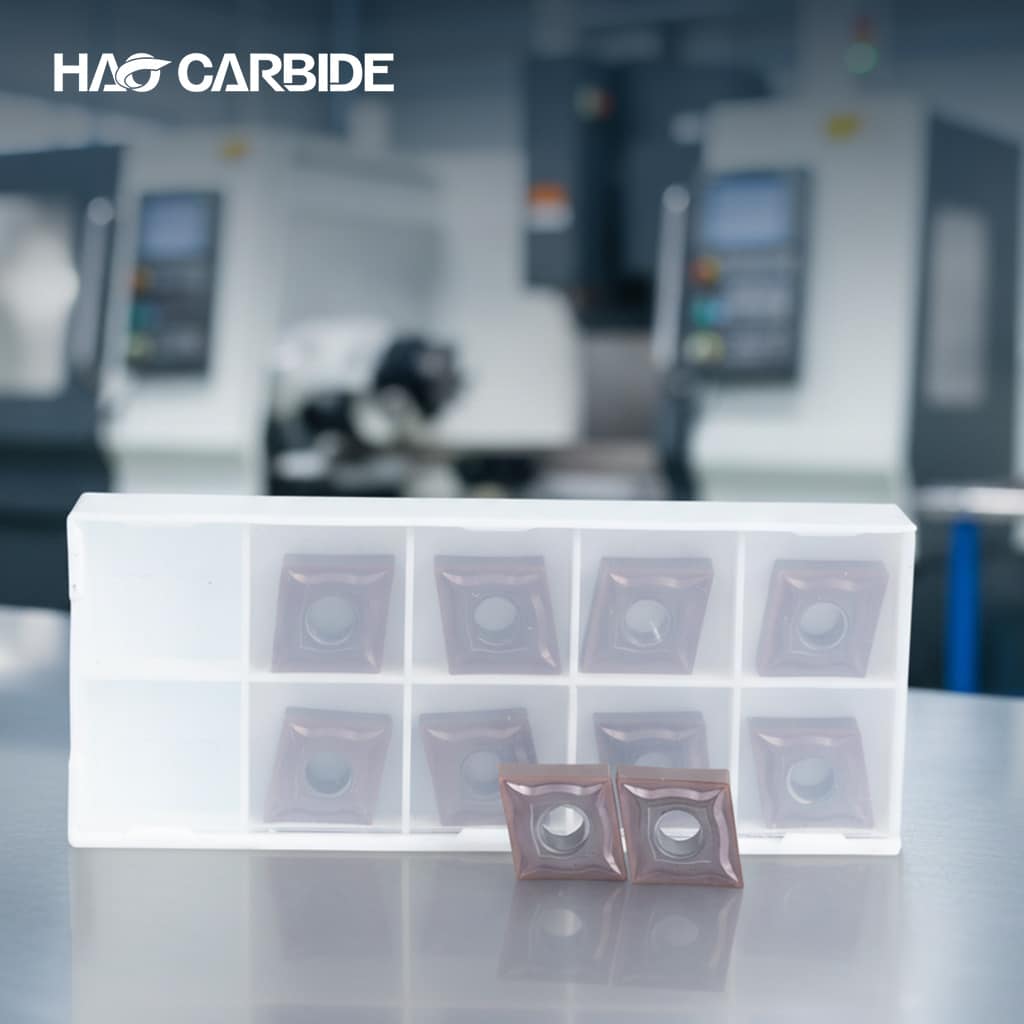

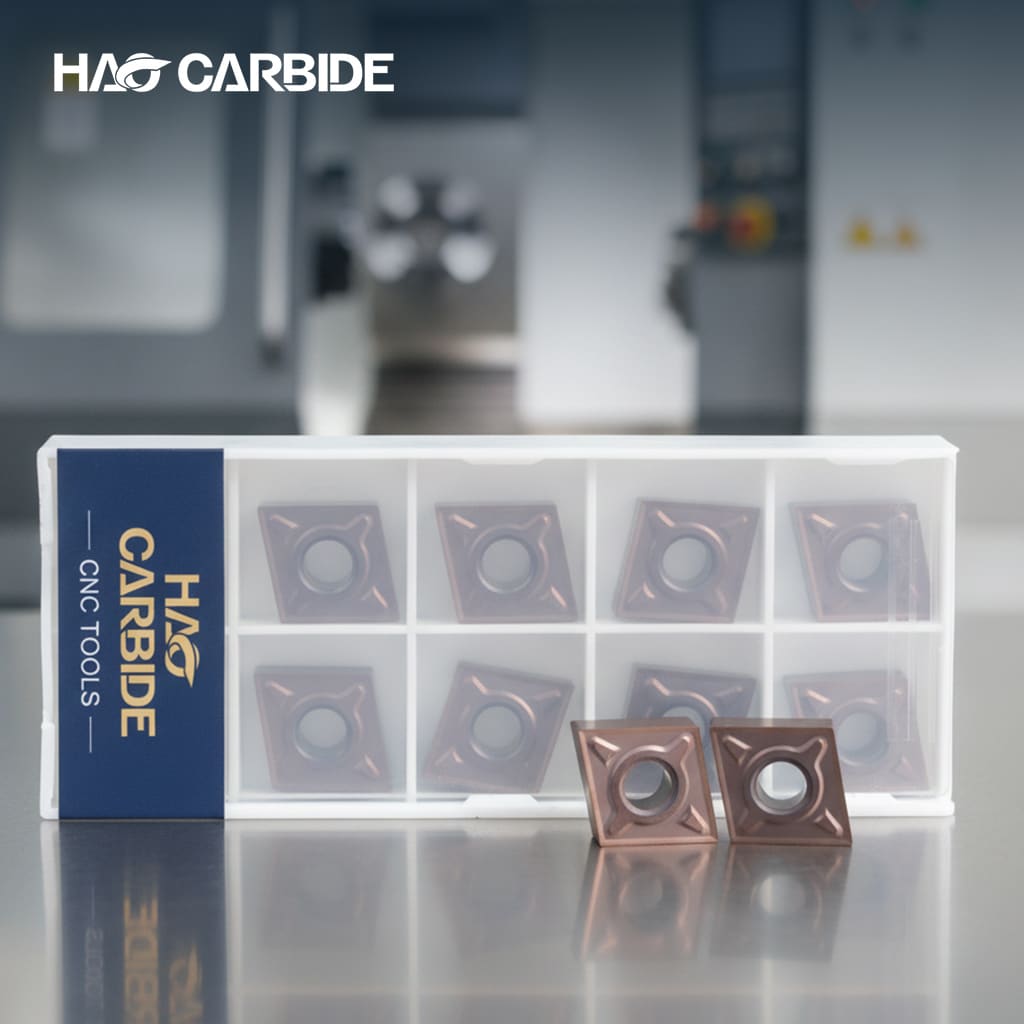

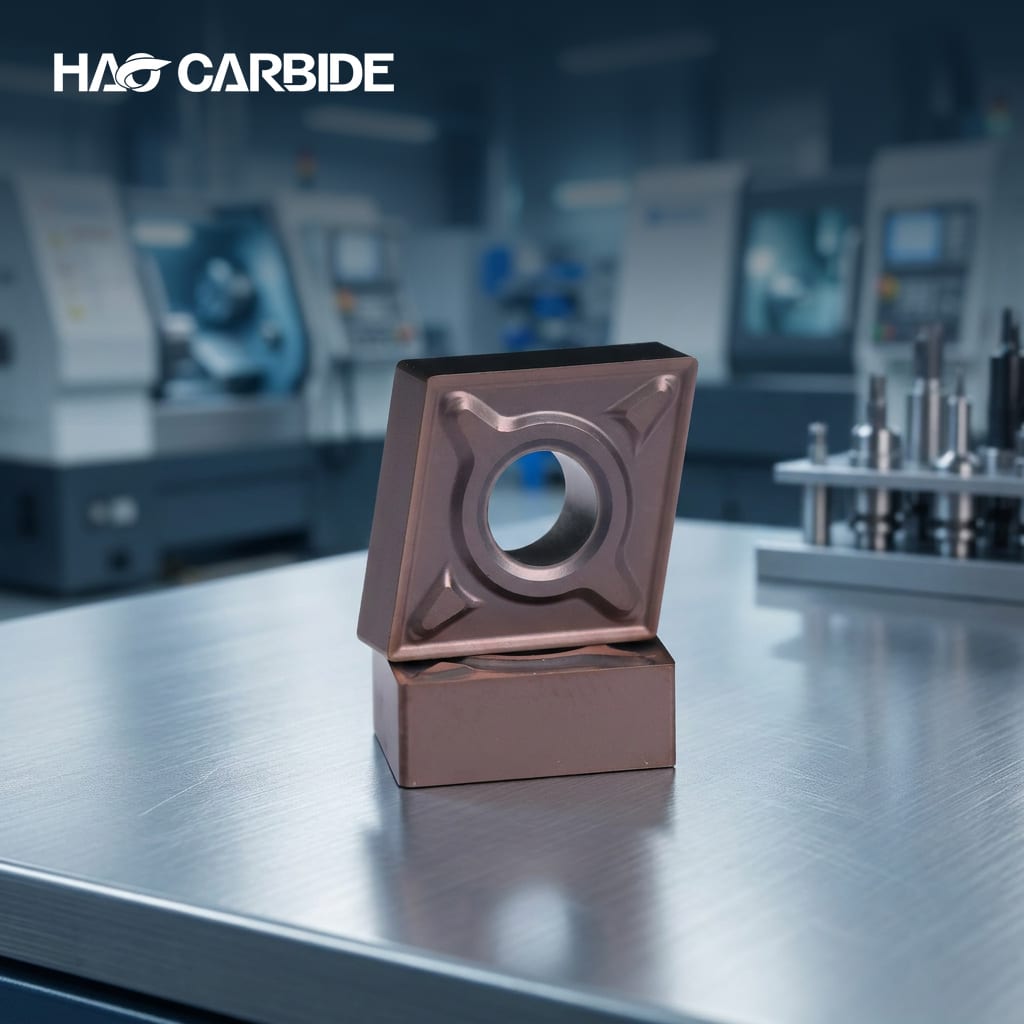

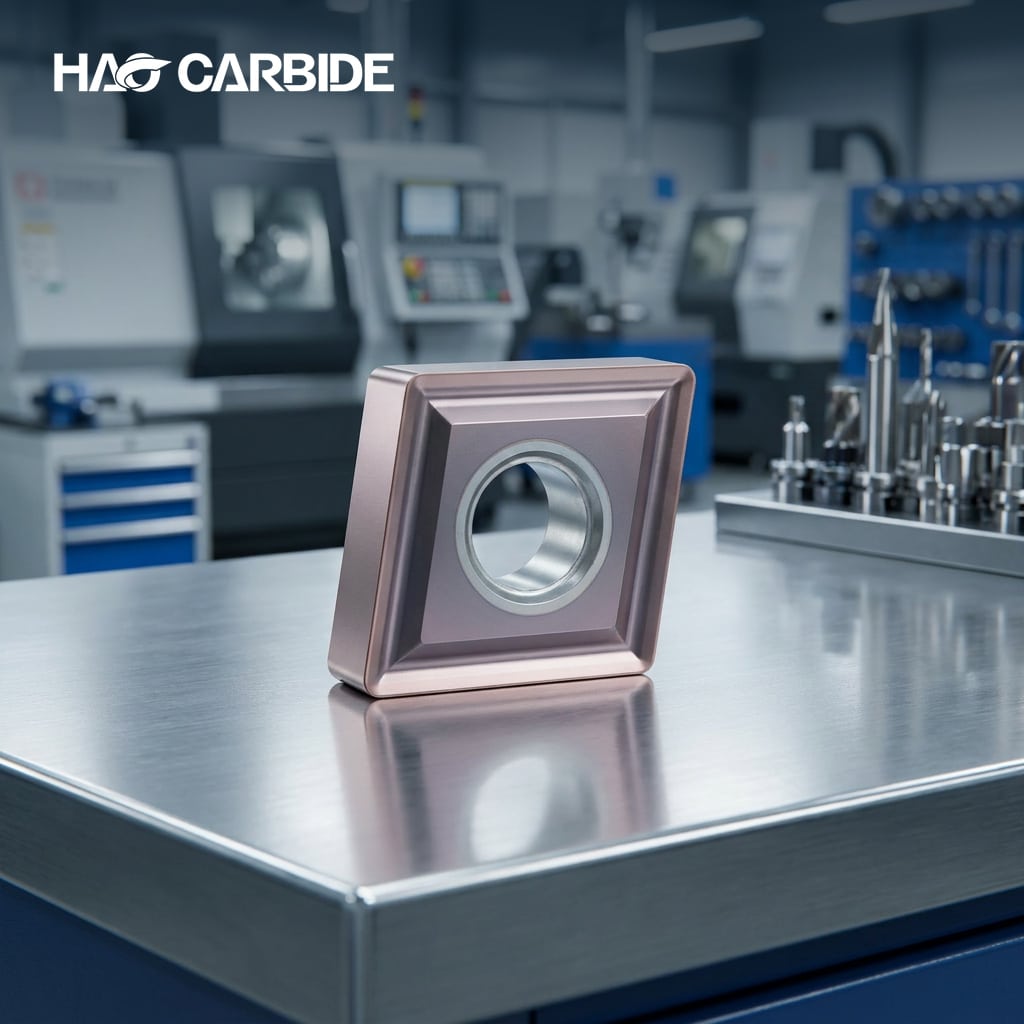

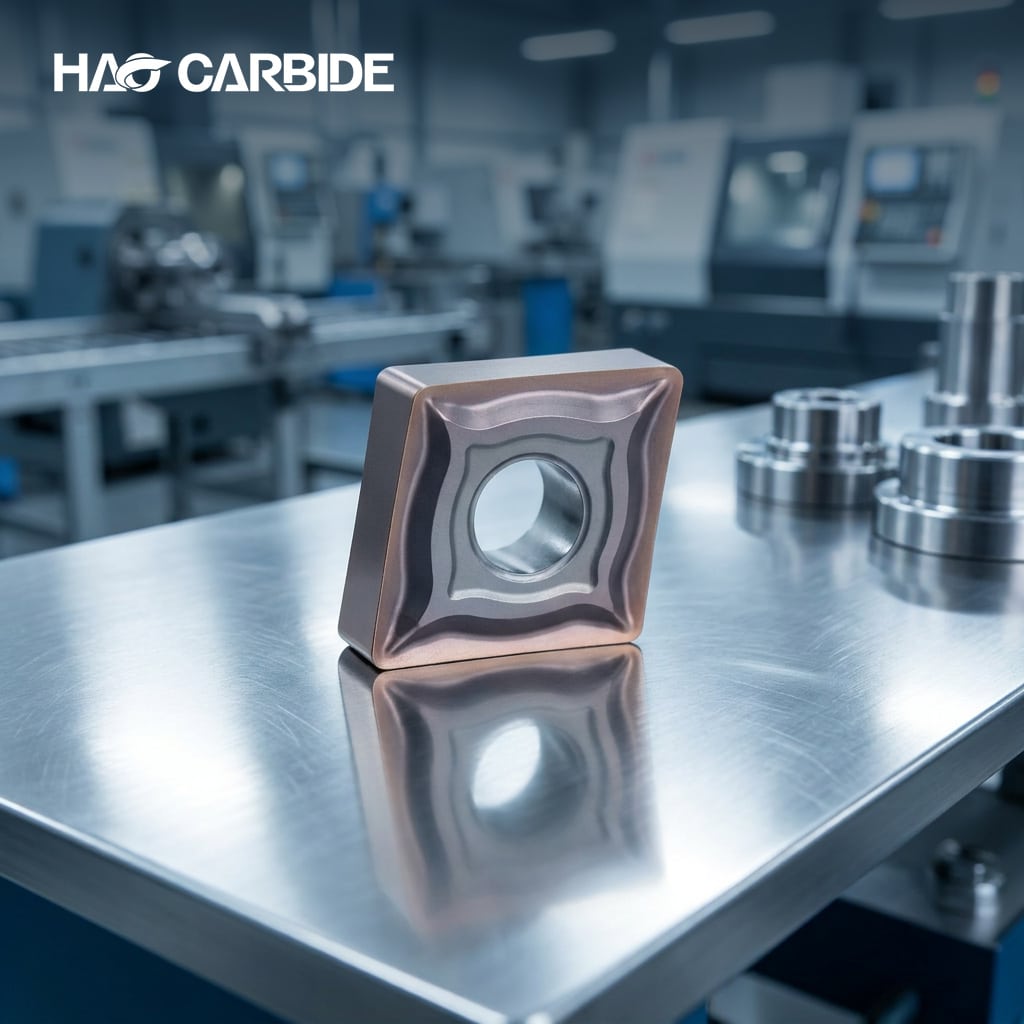

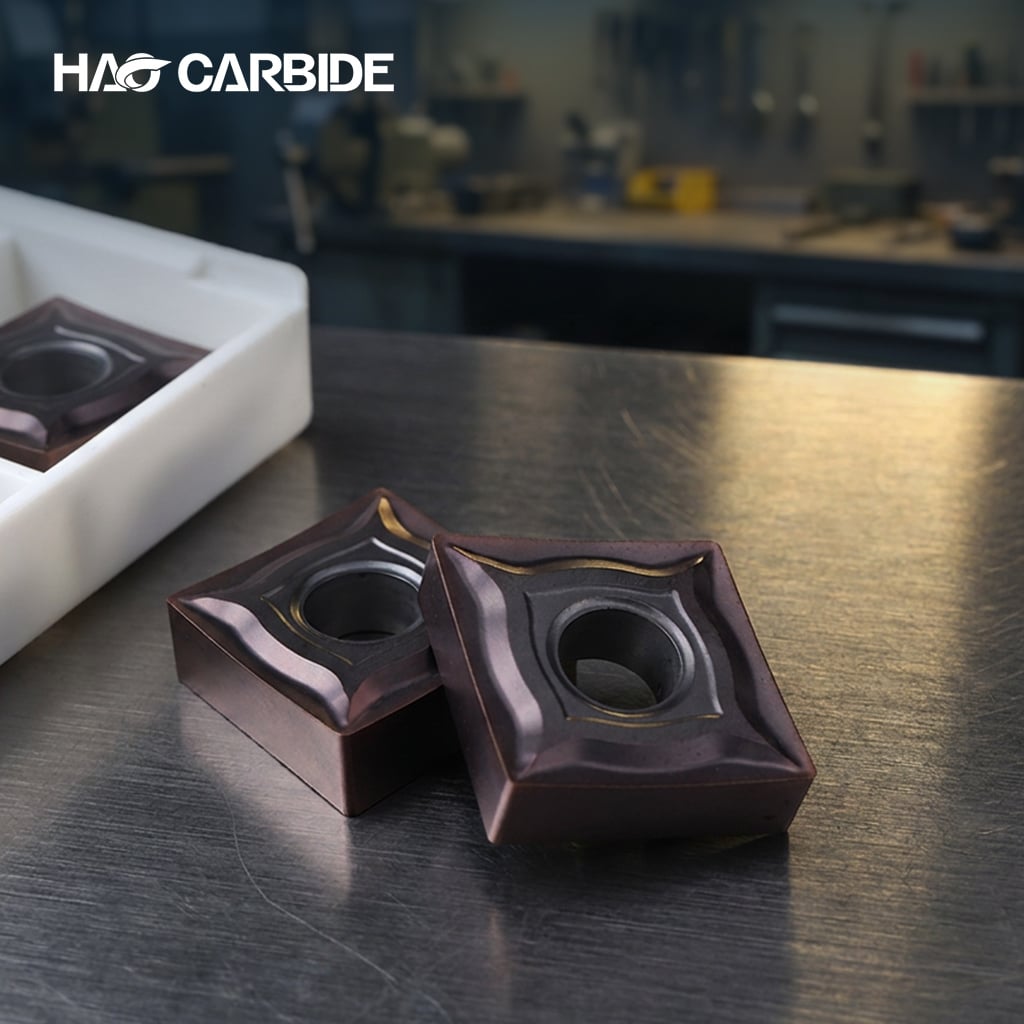

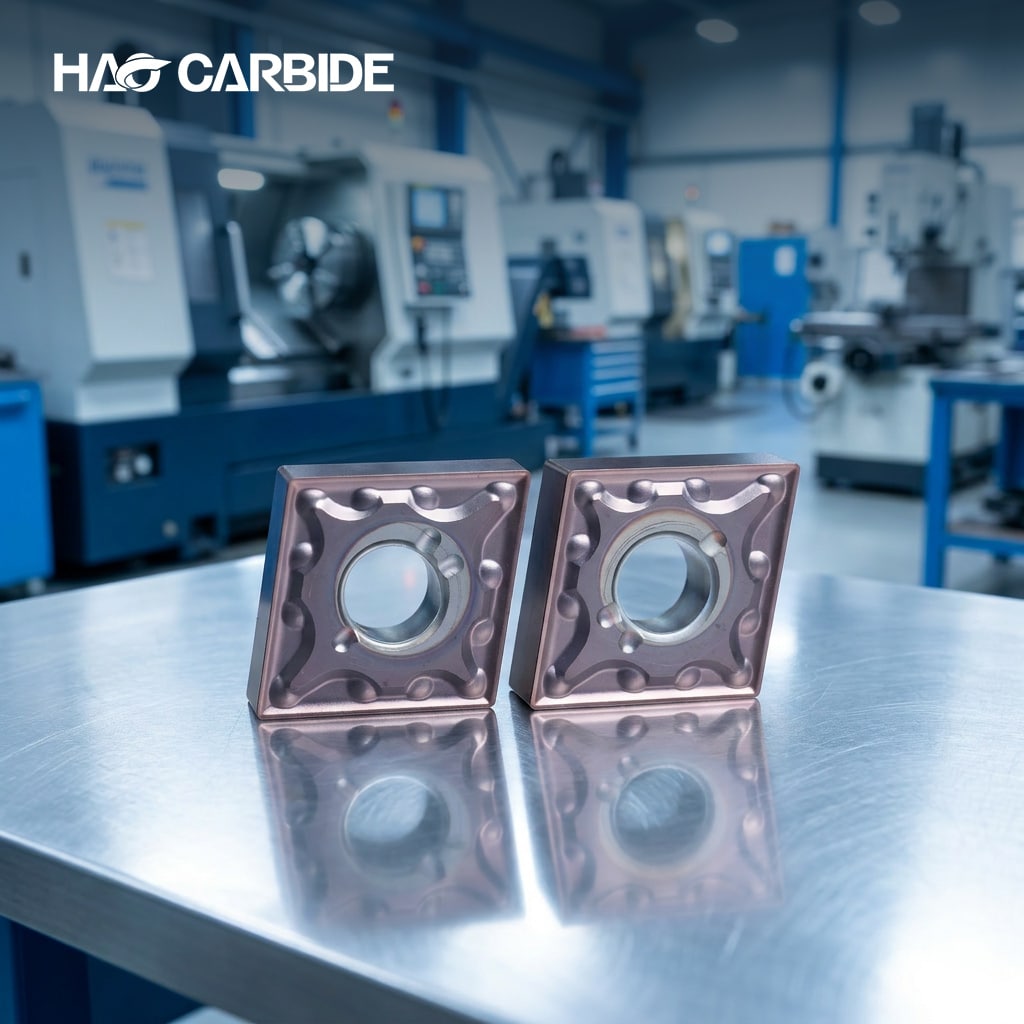

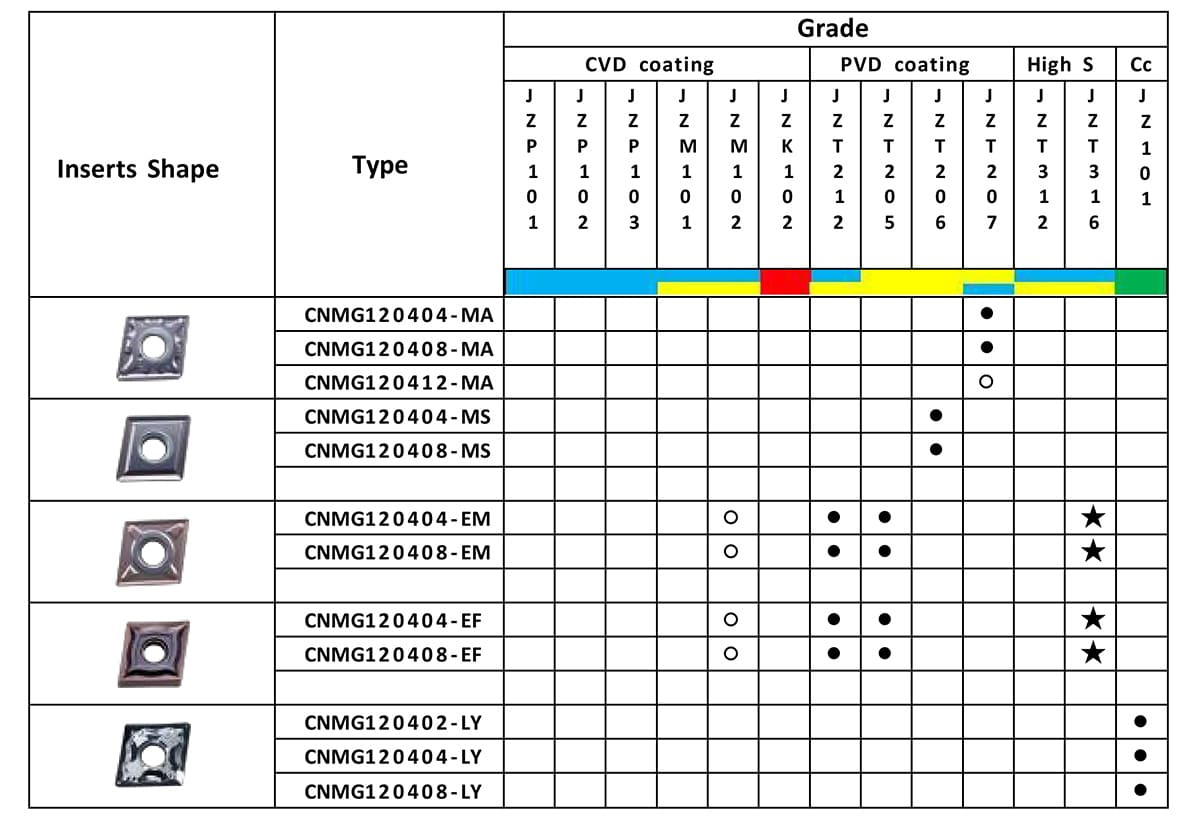

The CNMG is an 80° rhombic, negative-rake, flat-top turning insert. It features zero relief angle and is double-sided, offering two usable cutting faces. Common specifications include CNMG1204, 1606, and 1906, and these inserts are compatible with standard toolholders for external turning, facing, and internal boring operations.

Product Name: CNMG Insert
Material: Tungsten carbide
Brand: HAO CARBIDE
Chip Breack: EF/EM/MA/CQ/ZC/PM/TM/MS

Description

Processing Characteristics

Structurally, the insert features six effective cutting edges across its two faces, offering high tip strength, excellent overall rigidity, and superior impact resistance. Its negative-rake design results in a robust cutting edge that is highly resistant to chipping, making it ideal for heavy-duty roughing and interrupted cutting applications. It is suitable for machining carbon steel, alloy steel, cast iron, and cast steel, and can process heat-treated hard materials up to approximately HRC50. When paired with a thick CVD coating, it exhibits high heat resistance and wear resistance, making it well-suited for high-volume, heavy-duty turning operations. While its cutting resistance is slightly higher than that of positive-rake inserts and its surface finish is generally moderate, it excels in roughing and semi-finishing tasks; it is not recommended for ultra-high-precision, mirror-finish turning applications.

Additional information

Product Name

CNMG Insert

Material

Tungsten carbide

Brand

HAO CARBIDE

Chip Breack

EF/EM/MA/CQ/ZC/PM/TM/MS
