MPHT Insert

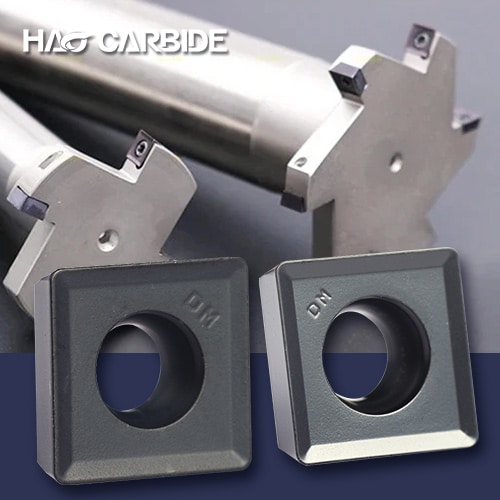

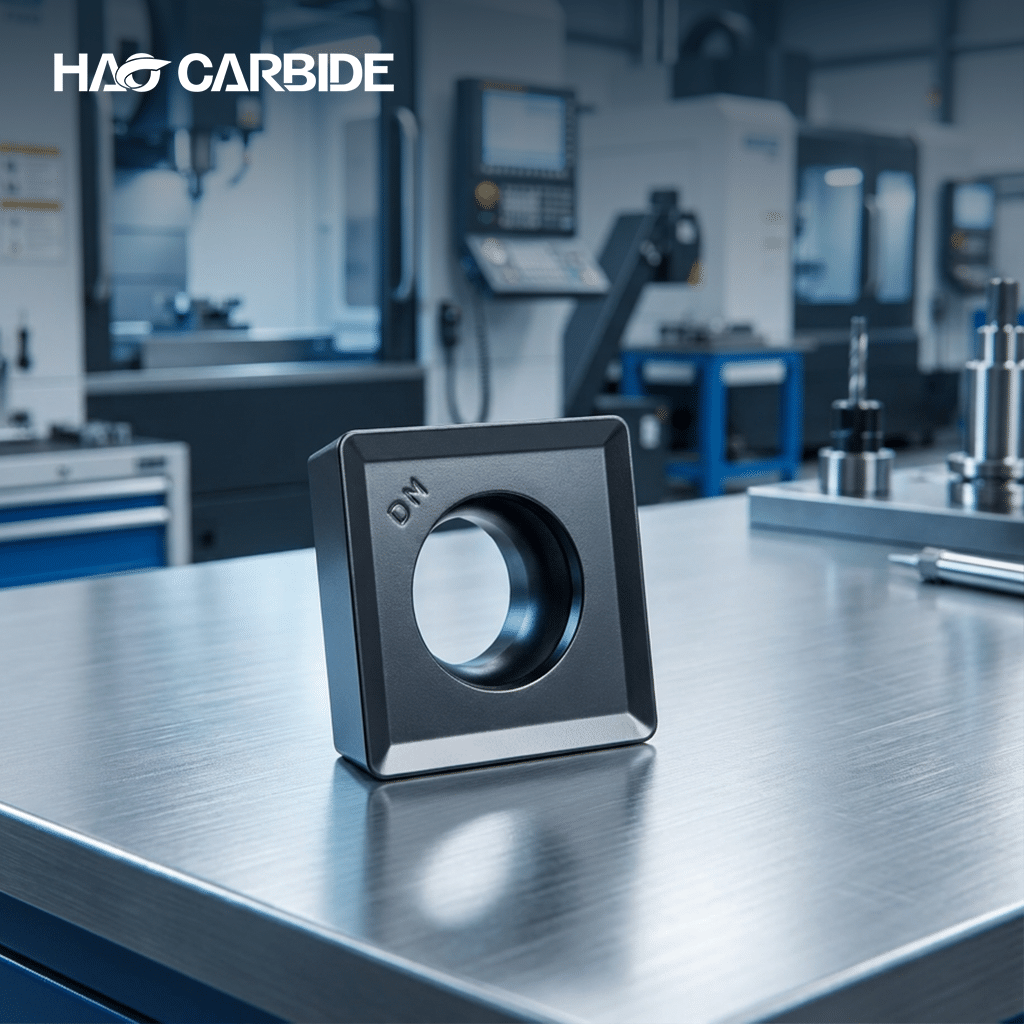

The MPHT is a square, double-sided indexable milling insert featuring a 15° positive rake angle and two cutting edges per side. Common specifications include MPHT060304, MPHT080305, and MPHT120408; these inserts are compatible with SMC/SMP series side-and-face milling cutters and T-slot cutters.

Product Name: MPHT Insert
Material: Tungsten carbide
Brand: HAO CARBIDE
Chip Break: DM

Description

Processing Characteristics

It features a sharp cutting edge and a wiper edge design, resulting in low cutting resistance, smooth chip evacuation, and excellent resistance to material adhesion. The square geometry provides high rigidity, offering strong resistance to impact and suitability for interrupted cutting operations. It is primarily designed for slot milling, side milling, and the machining of T-slots and keyways, and is suitable for use with steel, stainless steel, cast iron, and titanium alloys. The insert utilizes an ultra-fine grain substrate combined with a PVD coating, ensuring high wear resistance and thermal stability. Its compact dimensions make it ideal for machining narrow slots, deep slots, and within confined spaces. Disadvantages include a limited number of cutting edges and moderate efficiency during heavy-duty roughing operations; consequently, it is not recommended for roughing applications involving large material removal allowances.

Additional information

Product Name

MPHT Insert

Material

Tungsten carbide

Brand

HAO CARBIDE

Chip Break

DM
